Signal Circuit Inspection
- Ignition "OFF".
- Disconnect "TRANSAXLE RANGE SWITCH" and "TCM (PCM)" connector.

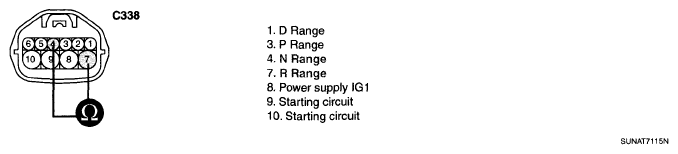

- Measure resistance between each terminals of the sensor harness to check for Short.
Specification : Infinite
- Is resistance within specifications?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Check for Short in harness. Repair as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
