Components (2)

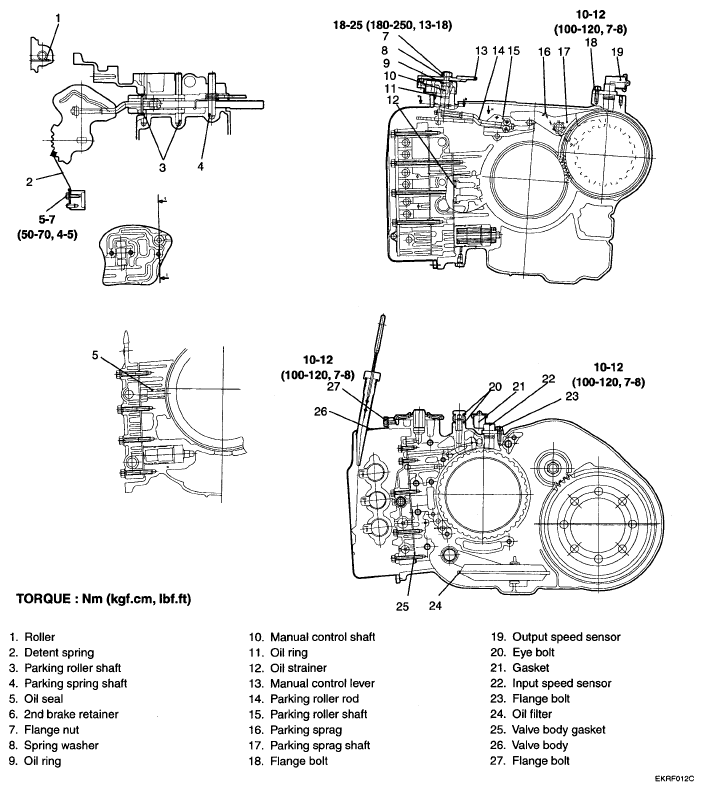

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications
G05186437Courtesy of KIA MOTORS AMERICA, INC.
