Input Speed Sensor
INPUT SPEED SENSORDESCRIPTION
INPUT SHAFT SPEED SENSOR
^ Type: Hall sensor
^ Current consumption: 22mA (MAX.)
^ Sensor body and sensor connector have been unified as one.
Input Shaft Speed Sensor:
Hall Type Sensor: Specification:
Wave Form With High-Scan:

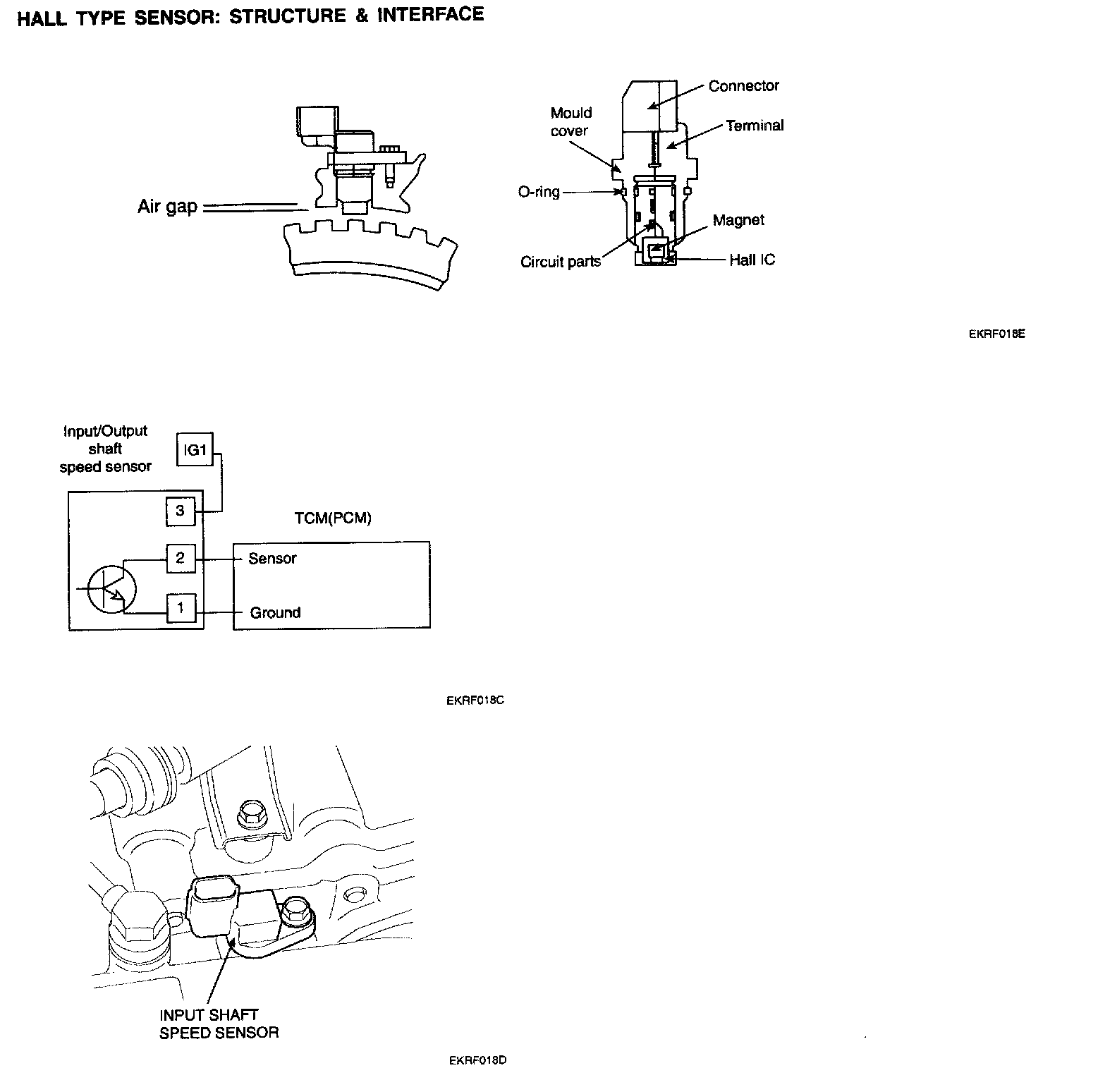

Hall Type Sensor: Structure & Interface:
