Component Inspection

Check outside mirror defogger
1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & engine "OFF"
3. Select `ACTUATION TEST' mode on scantool and press [F1] to start

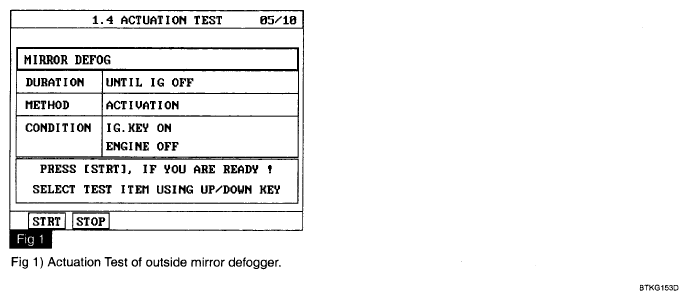

  Fig 1: Identifying Scantool Display - Actuation Test Of Outside Mirror Defogger
  Courtesy of KIA MOTORS AMERICA, INC.
4. Dose outside mirror defogger work properly?
  YES

  Go to 2 "Check DDM" procedure.

  NO

  Substitute with a known-good left outside mirror and check for proper operation.

  If the problem is corrected, replace left outside mirror and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Check DDM
1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & engine "OFF"
3. Substitute with a known-good DDM and Check if the DTC is erased.
4. Is the DTC erased?
  YES

  Substitute with a known-good DDM and check for proper operation.

  If the problem is corrected, replace DDM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

  NO

  Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
