Backup Lamps Function

  1. Necessary conditions to switch ON:
    • When inhibit sw `R' read by FAM is active and transmitted to RAM by CAN signal.
  2. Necessary conditions to switch OFF:
    • When inhibit sw `R' read by FAM is not active and transmitted to RAM by CAN signal.
  3. Functional diagram

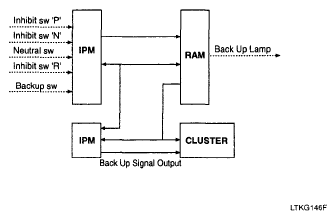

    Fig 1: Backup Lamps Functional Diagram
    G04884593Courtesy of KIA MOTORS AMERICA, INC.
