Battery Saver Function

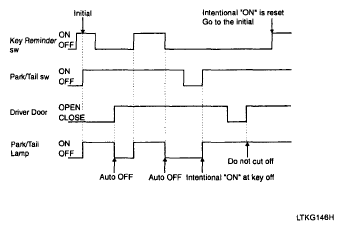

- Necessary conditions to activate the Battery Saver function:
- Do not turn off the Park/Tail Lamp when intentionally turned on.
- If Key reminder switch is ON and Park/Tail Lamp switch is ON, Intentional "ON" should be reset
- If the driver's door is open and if the key is not in the key hole whereas the Head lamp switch is still in position `Park and tail lamp' or `Head lamp Low Beam', the park and tail lamps (and the Front fog lamps if turned on) are immediately turned off.
- Necessary conditions to cancel the Battery Saver function:
- As soon as the Key is input into the IGN Key Cylinder or the Head lamp switch is put to position OFF.
Courtesy of KIA MOTORS AMERICA, INC.

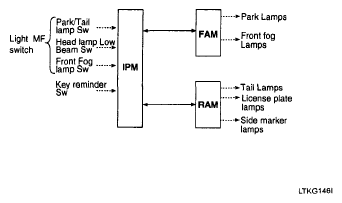

- Functional diagram
Courtesy of KIA MOTORS AMERICA, INC.
