DRL Function

  1. The Auto DRL function operates the Head lamps High Beam at 50% of full illumination.

    The park and tail are managed by the auto light sensor.

    The Auto DRL function is active if:

    • The ignition switch is on RUN position
    • The engine is running.
    • The Park brake switch is OFF.
  2. The DRL function is inactive when one of above conditions is released.

    When the DRL function is active, the Head lamps High Beam can't be turned ON, except for the Flash To Pass activation.

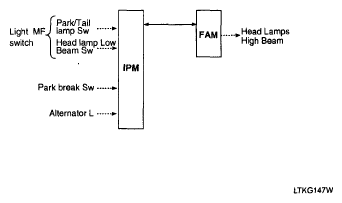

  3. Functional diagram
    Fig 1: DRL Functional Diagram
    G04884595Courtesy of KIA MOTORS AMERICA, INC.
