Front Fog Lamps Function

Necessary conditions to switch ON:
- By using the stalk: Head lamp switch in position `Head lamp Low Beam' and Front Fog lamp sw ON
- When Auto light function activated and Auto light Sensor signal status is `HL ON' and Front Fog lamp sw ON
Necessary conditions to switch OFF:
- When Auto light function activated and Auto light Sensor signal status is not ON
- When Front fog lamp sw OFF.
Functional Diagram

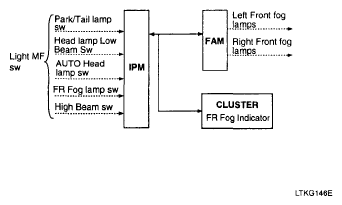

Fig 1: Front Fog Lamps Functional Diagram
Courtesy of KIA MOTORS AMERICA, INC.

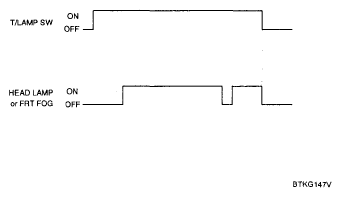

Fig 2: Flashing Pattern Of Front Fog Lamps
Courtesy of KIA MOTORS AMERICA, INC.

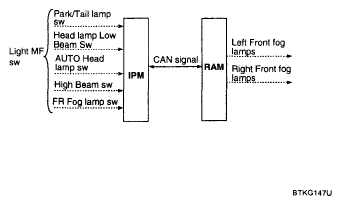

Fig 3: Front Fog Lamps Functional Diagram
Courtesy of KIA MOTORS AMERICA, INC.
