Stop Lamps Function

  1. Necessary conditions to switch ON the stop lamps:
    • Pushing on the brake pedal.
  2. Necessary conditions to switch OFF the stop lamps:
    • Releasing the brake pedal.
  3. Functional diagram

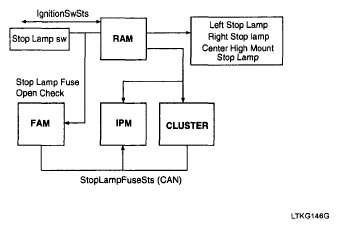

    Fig 1: Stop Lamps Functional Diagram
    G04884594Courtesy of KIA MOTORS AMERICA, INC.
