Central Lock/Unlock

  1. Central locking/unlocking logic is controlled by IPM. Locking/Unlocking inputs are located in ADM, DDM (Lock/Unlock switch, door knobs, door key cylinder) and in IPM (RKE receiver).
  2. Locking/Unlocking actuators are located in ADM for passenger door, DDM for driver door and RAM for sliding doors and tailgate.

    There are 5 ways of operating central lock/unlock:

    • With Key RKE
    • With Door Lock/Unlock switches located on ADM/DDM
    • With Door Lock Monitoring switches located on the passenger/driver door
    • With Door/Tailgate Key Cylinder Lock/Unlock switches located on the tailgate or passenger/driver door.

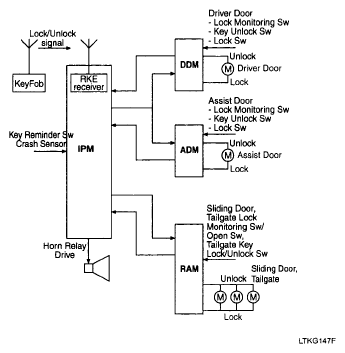

  3. Functional Diagram
    Fig 1: Central Locking Lock Functional Diagram
    G04884620Courtesy of KIA MOTORS AMERICA, INC.
