Remote Keyless Entry Panic

  1. Working Conditions

    RKE panic function is only active when the key is out of key cylinder.

    Once started, panic operation is not stopped when ignition key is inserted, ignition is ACC, RUN or START, or door is opened or closed.

  2. Functional Diagram

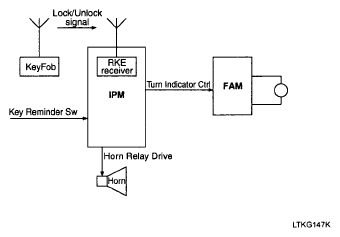

    Fig 1: Remote Keyless Entry Panic Functional Diagram
    G04884622Courtesy of KIA MOTORS AMERICA, INC.
