Front Wiper And Washer

  1. Front wiper working conditions

    These functions are active when Ign2 switch ON

    In the OFF and ACC states, the front wiper is not activated. If IGN2 turns OFF during wiper operation, the wiper stops at the current position and will move to the park position on the next IGN2 ON. In these states, the front washer is not active.

  2. Front washer working condition

    The front washer functionality is directly available to the driver. It consists in activating the front washer pump, which is located under hood. As long as the driver activates the washer multifunction switch, the front washer is active.

  3. Functional diagram

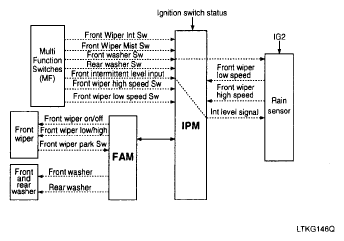

    Fig 1: Front Wiper Functional Diagram
    G04884605Courtesy of KIA MOTORS AMERICA, INC.
