IPM (In-Panel Module)

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel (A). (Refer to CRASH PAD )
    Fig 1: Identifying Crash Pad Lower Panel
    G04884635Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the keyless antenna cable and IPM (Instrument Panel Module) (A) after loosening 3 nuts and disconnecting 5 connectors.

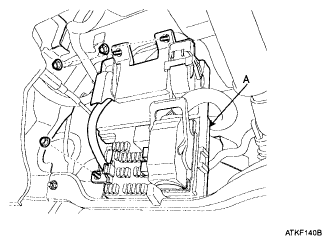

    Fig 2: Identifying Instrument Panel Module
    G04884636Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of removal.
