Wiper And Washer Switch Inspection: Notes

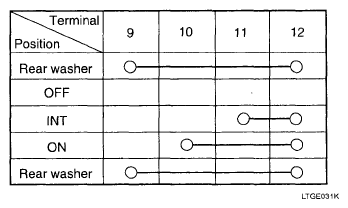

With the multi function switch in each position, make sure that continuity exists between the terminals shown in Fig 1 through Figure. If continuity is not as specified, replace the multi-function switch.

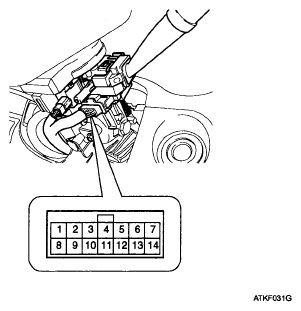

Fig 1: Identifying Rear Washer Switch Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.
