Power Seat Module (IMS Module): Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the seat back (Refer to FRONT SEAT ).

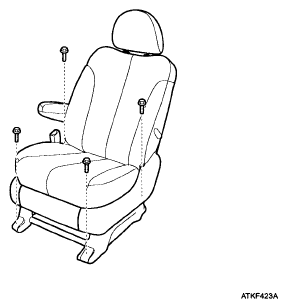

    Fig 1: Identifying Seats
    G04884886Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the power seat module after removing the power seat module mounting nuts (4 EA) and connector (3 EA).

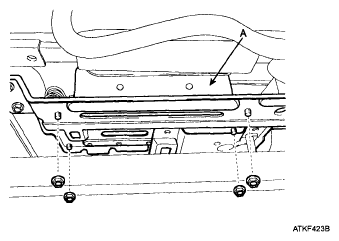

    Fig 2: Identifying Power Seat Module And Mounting Nuts
    G04885140Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of removal.
