Audio Remote Control: Replacement

Disconnect the negative (-) battery terminal.

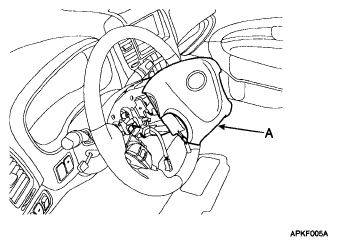

Remove the driver airbag module (A). (Refer to AIR BAG MODULE (DRIVER SIDE) .

Fig 1: Identifying Horn Pad
Courtesy of KIA MOTORS AMERICA, INC.
Remove the audio remote control switch (A) after removing the steering wheel remote control switch connector and 2 screws.

Fig 2: Identifying Steering Wheel Remote Control Switch Connectors And Screws
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
