ESC Switch: Inspection

  1. Remove the ESC OFF switch from the switch panel on the crash pad of the driver's side.

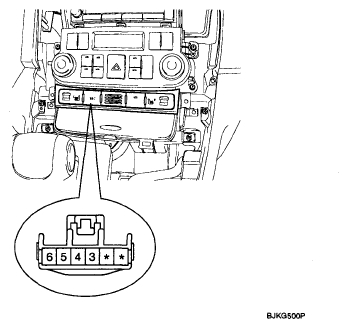

    Fig 1: Identifying ESC OFF Switch Terminals
    G04883941Courtesy of KIA MOTORS AMERICA, INC.
  2. Check the continuity between the switch terminals as the ESC OFF switch is engaged.
    Fig 2: ESC OFF Switch Terminals Continuity Chart
    G04883942Courtesy of KIA MOTORS AMERICA, INC.
