Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references

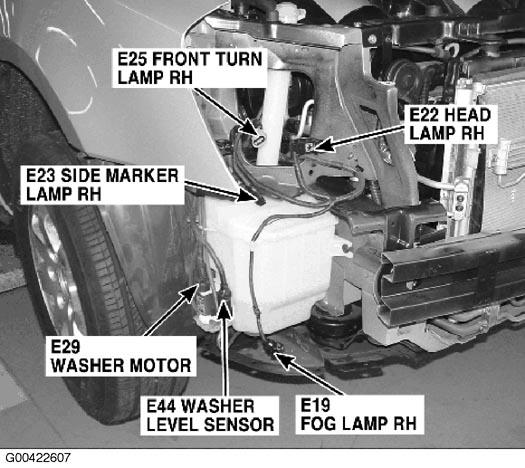

Fig 1: Right Front Corner Of Vehicle

G00422607

Courtesy of KIA MOTORS AMERICA, INC.

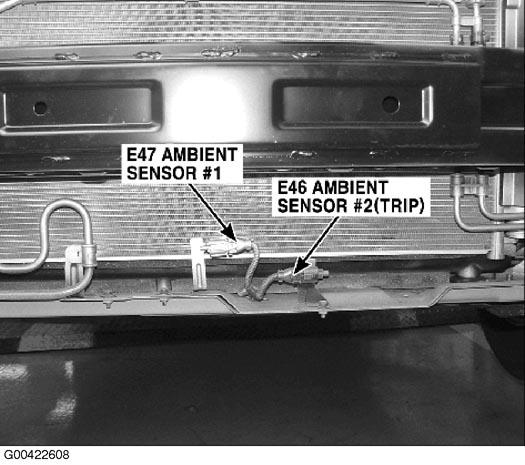

Fig 2: Front Of Engine Compartment

G00422608

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Left Front Of Engine Compartment

G00422609

Courtesy of KIA MOTORS AMERICA, INC.

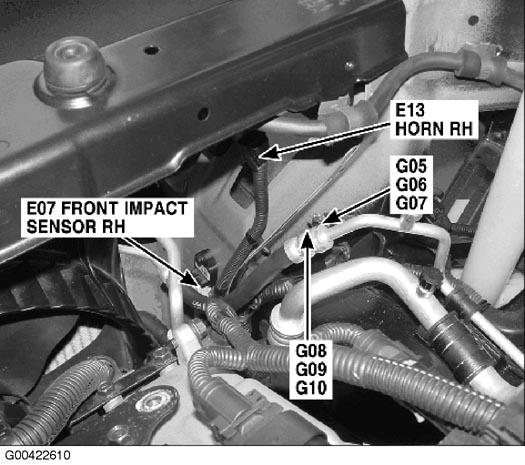

Fig 4: Right Front Of Engine Compartment

G00422610

Courtesy of KIA MOTORS AMERICA, INC.

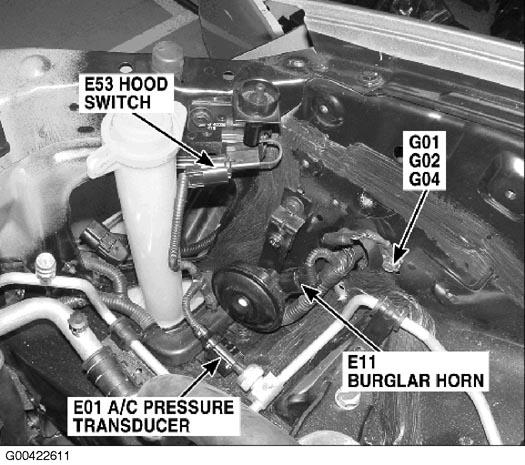

Fig 5: Right Front Of Engine Compartment

G00422611

Courtesy of KIA MOTORS AMERICA, INC.

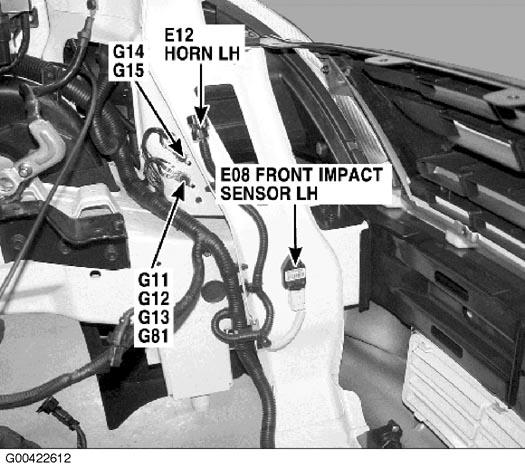

Fig 6: Left Front Of Engine Compartment

G00422612

Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Left Rear Of Engine Compartment

G00422613

Courtesy of KIA MOTORS AMERICA, INC.

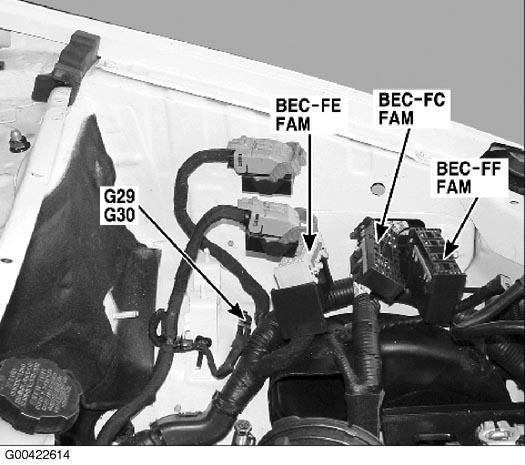

Fig 8: Left Side Of Engine Compartment

G00422614

Courtesy of KIA MOTORS AMERICA, INC.

Fig 9: Rear Of Engine Compartment

G00422616

Courtesy of KIA MOTORS AMERICA, INC.

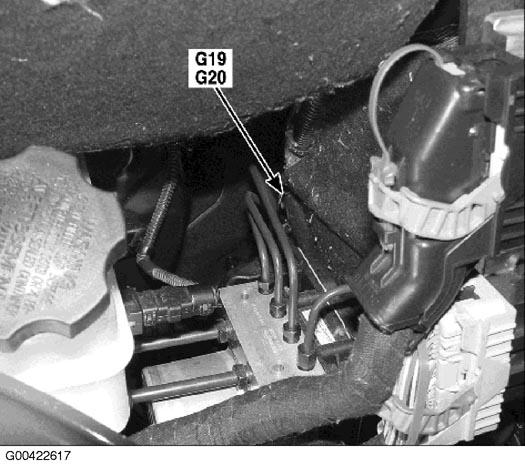

Fig 10: Left Rear Corner Of Engine Compartment

G00422617

Courtesy of KIA MOTORS AMERICA, INC.

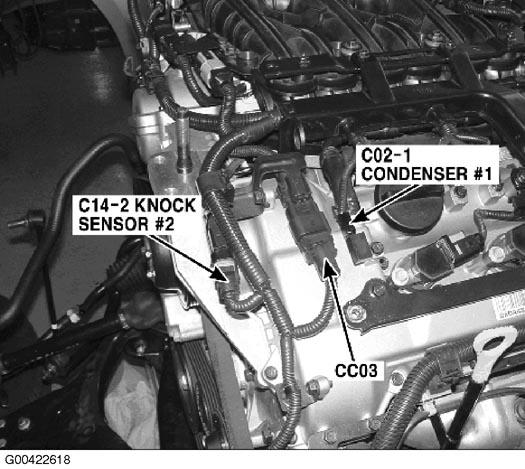

Fig 11: Front Of Engine

G00422618

Courtesy of KIA MOTORS AMERICA, INC.

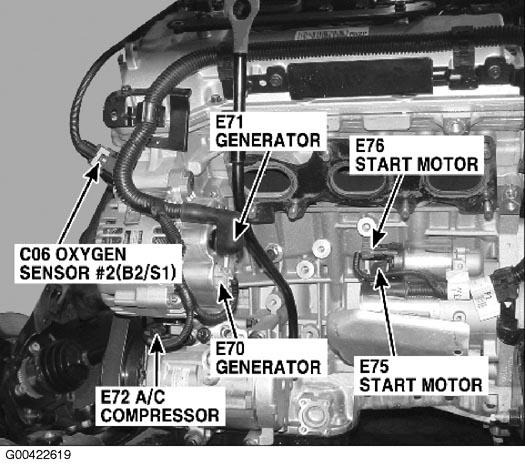

Fig 12: Left Side Of Engine

G00422619

Courtesy of KIA MOTORS AMERICA, INC.

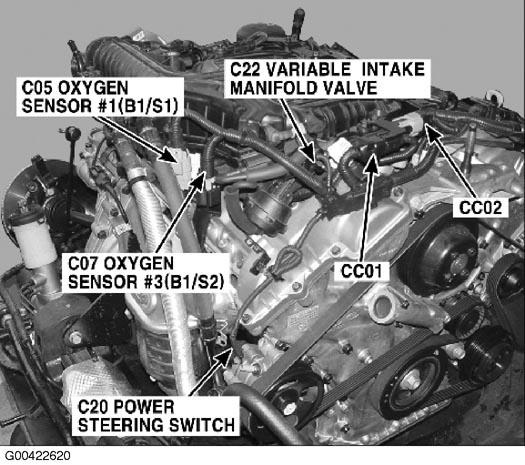

Fig 13: Right Front Of Engine

G00422620

Courtesy of KIA MOTORS AMERICA, INC.

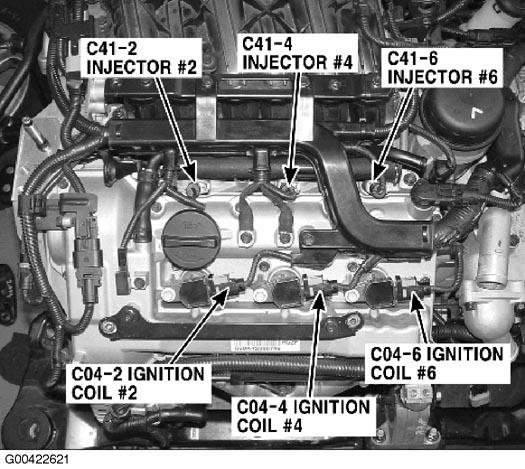

Fig 14: Top Left Side Of Engine

G00422621

Courtesy of KIA MOTORS AMERICA, INC.

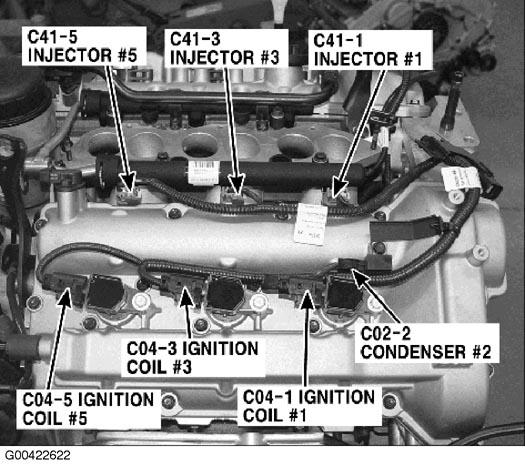

Fig 15: Top Right Side Of Engine

G00422622

Courtesy of KIA MOTORS AMERICA, INC.

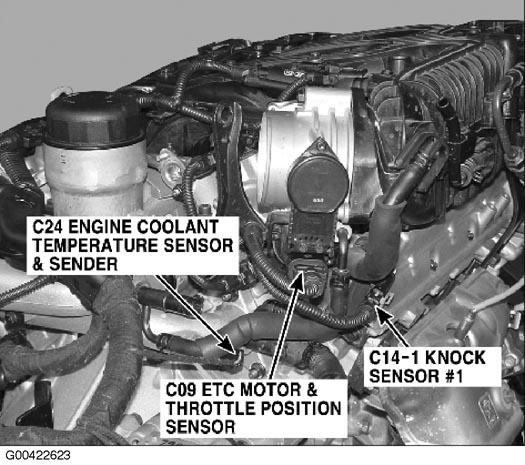

Fig 16: Rear Of Engine

G00422623

Courtesy of KIA MOTORS AMERICA, INC.

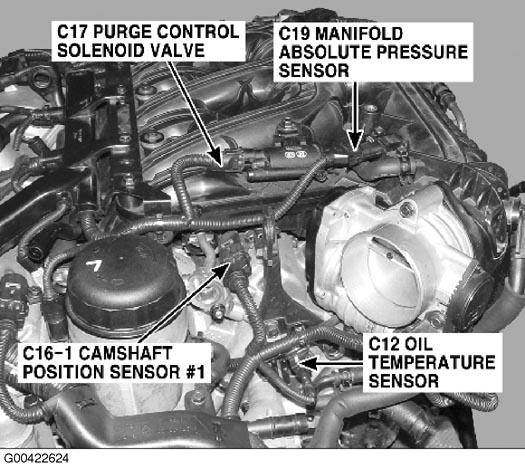

Fig 17: Rear Of Engine

G00422624

Courtesy of KIA MOTORS AMERICA, INC.

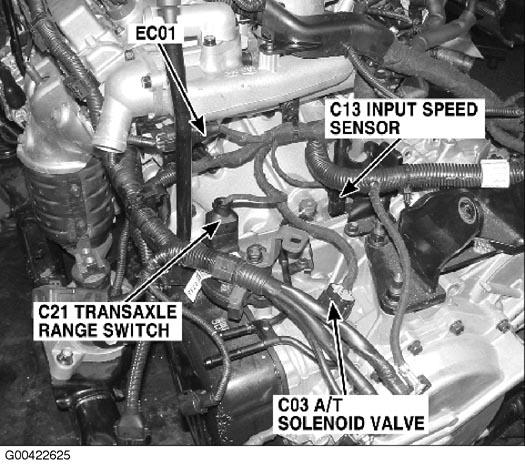

Fig 18: Top Of Transaxle

G00422625

Courtesy of KIA MOTORS AMERICA, INC.

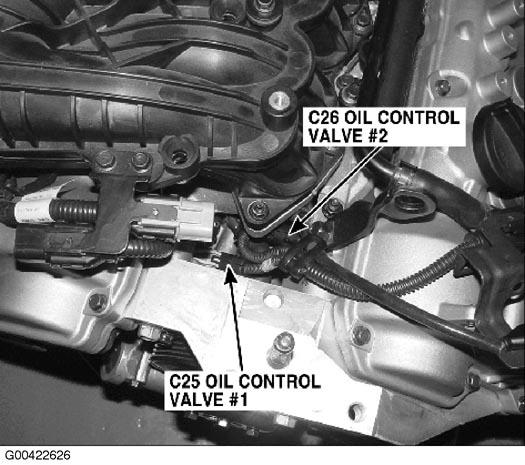

Fig 19: Front Of Engine

G00422626

Courtesy of KIA MOTORS AMERICA, INC.

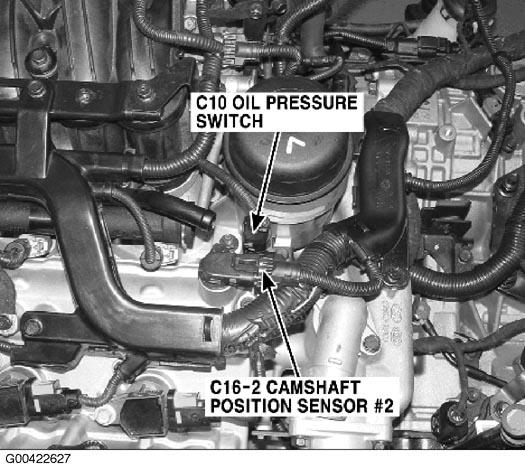

Fig 20: Left Rear Of Engine

G00422627

Courtesy of KIA MOTORS AMERICA, INC.

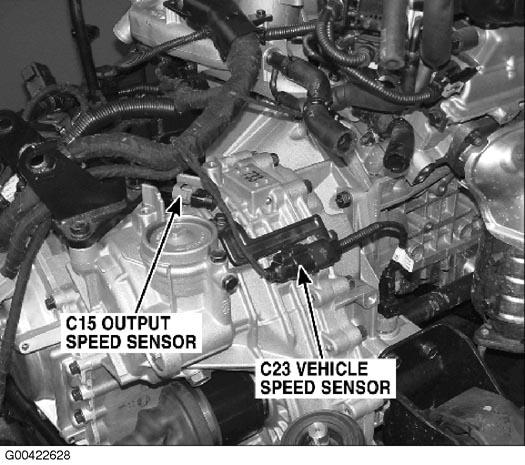

Fig 21: Right Side Of Transaxle

G00422628

Courtesy of KIA MOTORS AMERICA, INC.

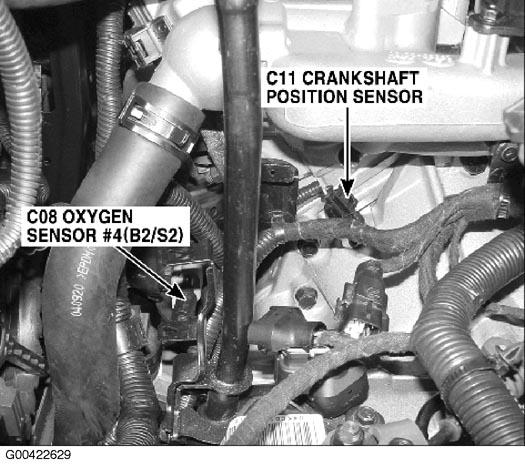

Fig 22: Left Rear Of Engine

G00422629

Courtesy of KIA MOTORS AMERICA, INC.

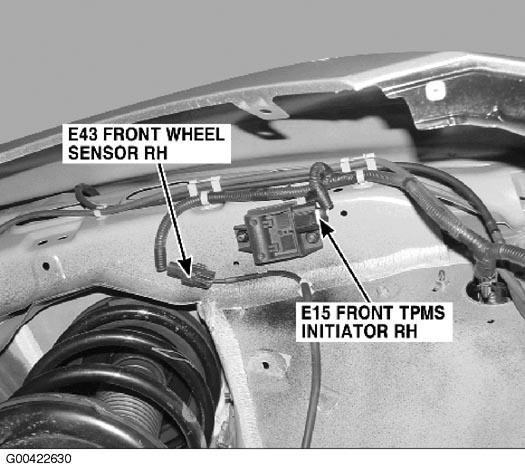

Fig 23: Right Front Wheelwell

G00422630

Courtesy of KIA MOTORS AMERICA, INC.

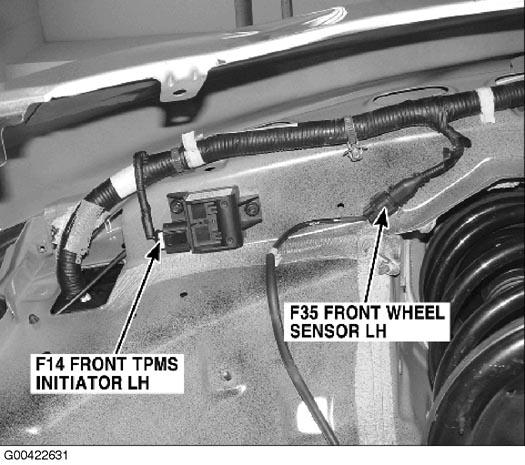

Fig 24: Left Front Wheelwell

G00422631

Courtesy of KIA MOTORS AMERICA, INC.

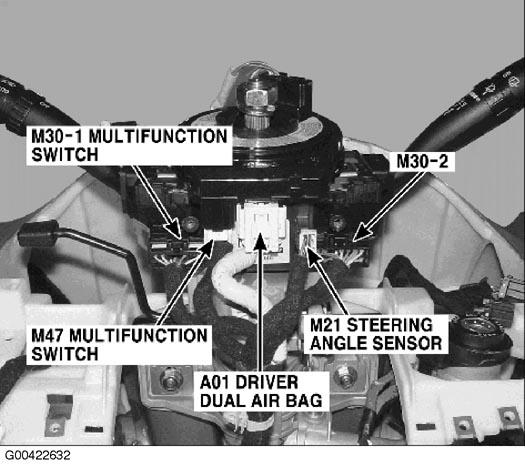

Fig 25: Steering Column

G00422632

Courtesy of KIA MOTORS AMERICA, INC.

Fig 26: Left Side Of Dash

G00422633

Courtesy of KIA MOTORS AMERICA, INC.

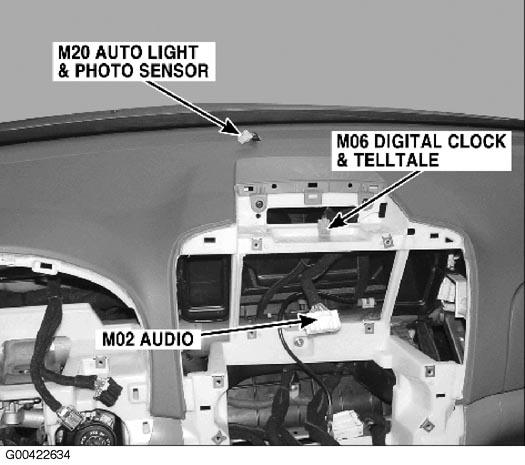

Fig 27: Center Of Dash

G00422634

Courtesy of KIA MOTORS AMERICA, INC.

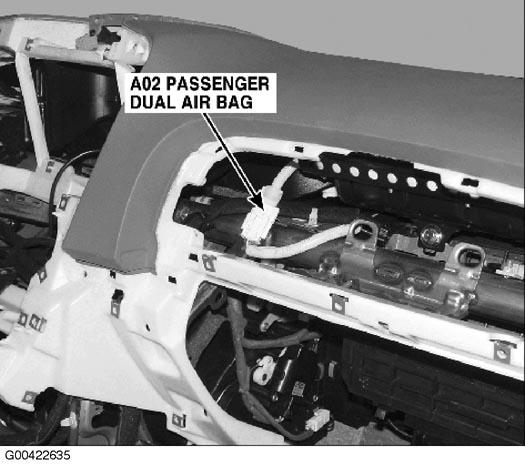

Fig 28: Right Side Of Dash

G00422635

Courtesy of KIA MOTORS AMERICA, INC.

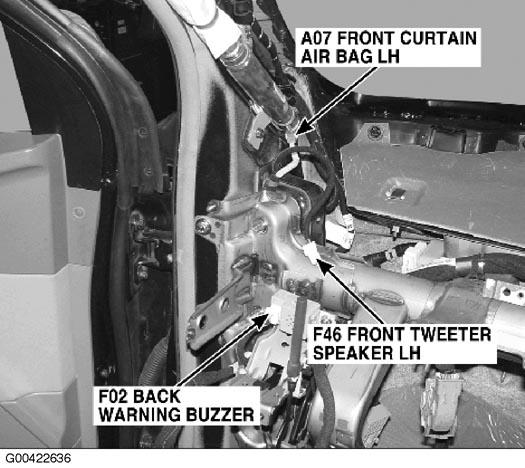

Fig 29: Left "A" Pillar

G00422636

Courtesy of KIA MOTORS AMERICA, INC.

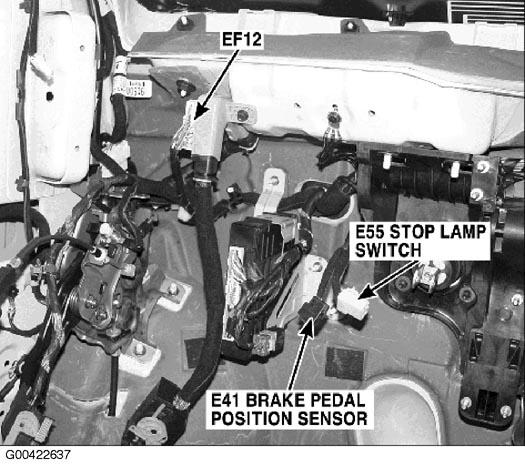

Fig 30: Left Side Of Dash

G00422637

Courtesy of KIA MOTORS AMERICA, INC.

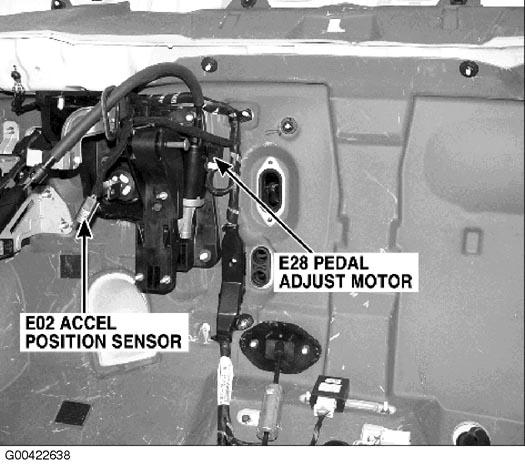

Fig 31: Left Side Of Dash

G00422638

Courtesy of KIA MOTORS AMERICA, INC.

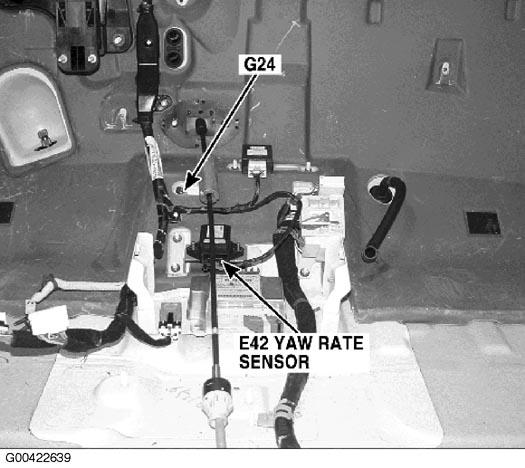

Fig 32: Center Of Dash

G00422639

Courtesy of KIA MOTORS AMERICA, INC.

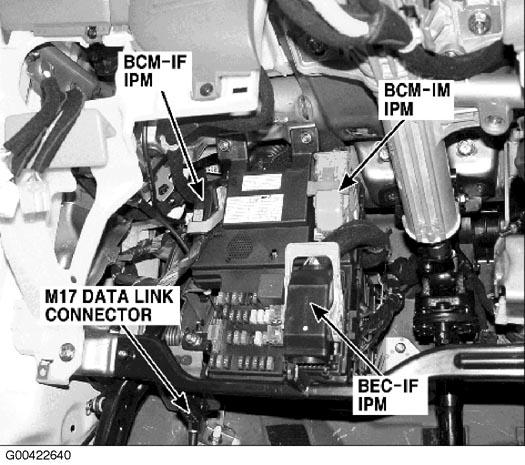

Fig 33: Left Side Of Dash

G00422640

Courtesy of KIA MOTORS AMERICA, INC.

Fig 34: Center Of Dash

G00422641

Courtesy of KIA MOTORS AMERICA, INC.

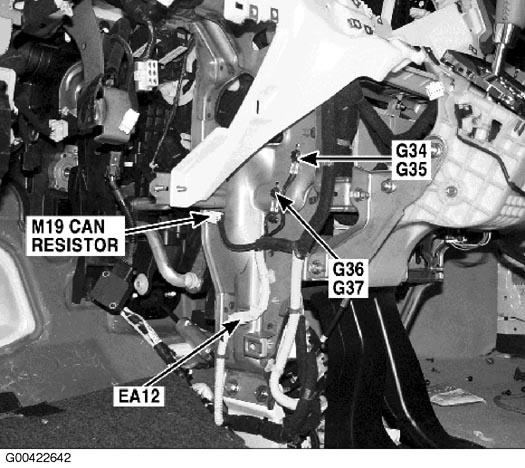

Fig 35: Left Center Of Dash

G00422642

Courtesy of KIA MOTORS AMERICA, INC.

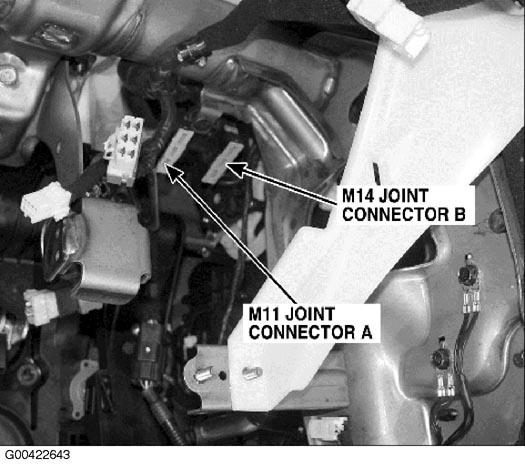

Fig 36: Left Center Of Dash

G00422643

Courtesy of KIA MOTORS AMERICA, INC.

Fig 37: Center Of Dash

G00422644

Courtesy of KIA MOTORS AMERICA, INC.

Fig 38: Center Of Dash

G00422645

Courtesy of KIA MOTORS AMERICA, INC.

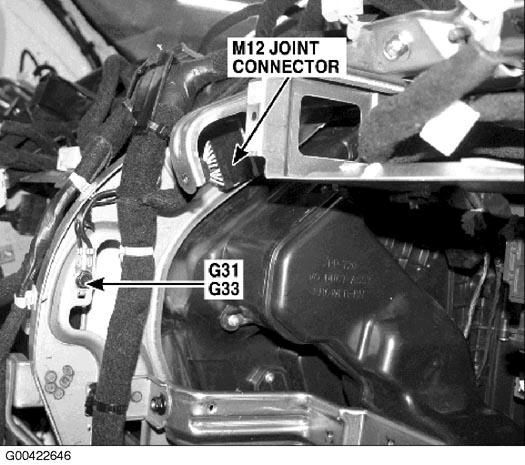

Fig 39: Right Center Of Dash

G00422646

Courtesy of KIA MOTORS AMERICA, INC.

Fig 40: Right Center Of Dash

G00422647

Courtesy of KIA MOTORS AMERICA, INC.

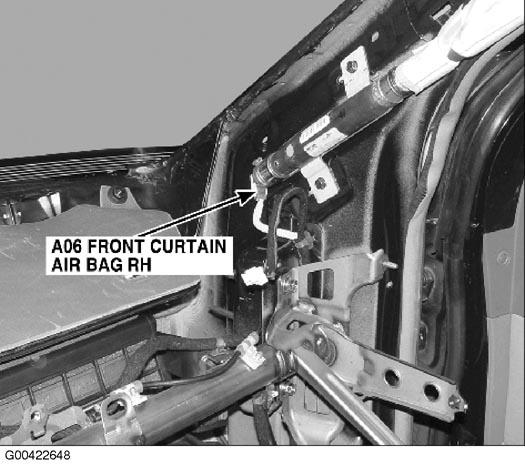

Fig 41: Right "A" Pillar

G00422648

Courtesy of KIA MOTORS AMERICA, INC.

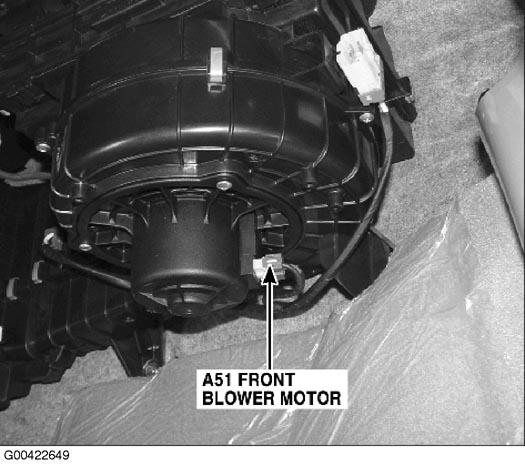

Fig 42: Right Side Of Dash

G00422649

Courtesy of KIA MOTORS AMERICA, INC.

Fig 43: Center Of Dash

G00422650

Courtesy of KIA MOTORS AMERICA, INC.

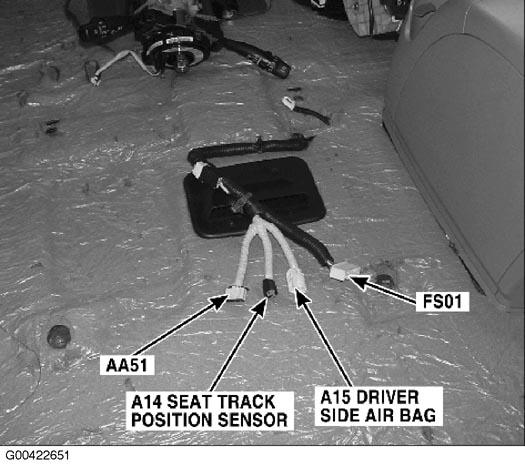

Fig 44: Under Driver's Seat

G00422651

Courtesy of KIA MOTORS AMERICA, INC.

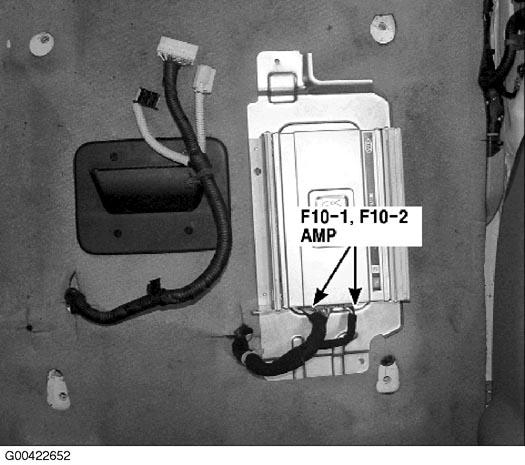

Fig 45: Under Front Passenger's Seat

G00422652

Courtesy of KIA MOTORS AMERICA, INC.

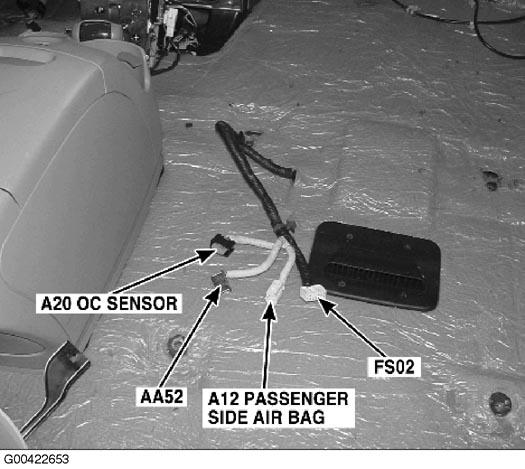

Fig 46: Under Front Passenger's Seat

G00422653

Courtesy of KIA MOTORS AMERICA, INC.

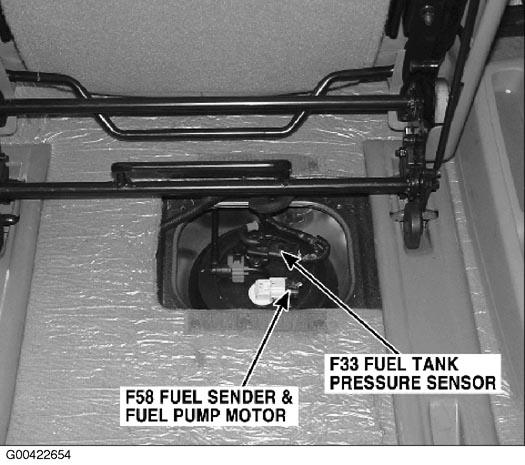

Fig 47: Under Left Rear Seat

G00422654

Courtesy of KIA MOTORS AMERICA, INC.

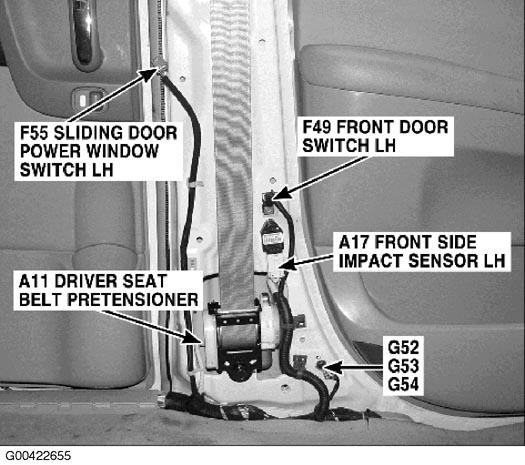

Fig 48: Left "B" Pillar

G00422655

Courtesy of KIA MOTORS AMERICA, INC.

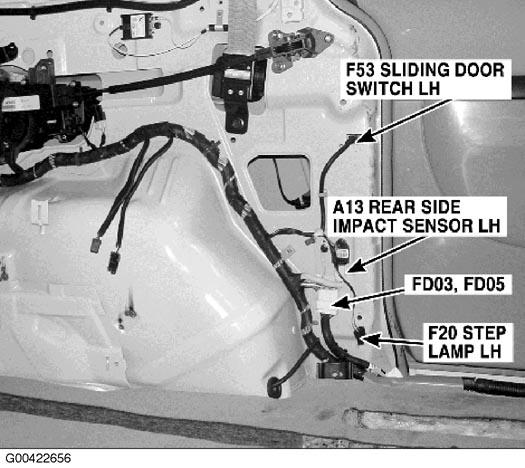

Fig 49: Left "C" Pillar & Wheelwell

G00422656

Courtesy of KIA MOTORS AMERICA, INC.

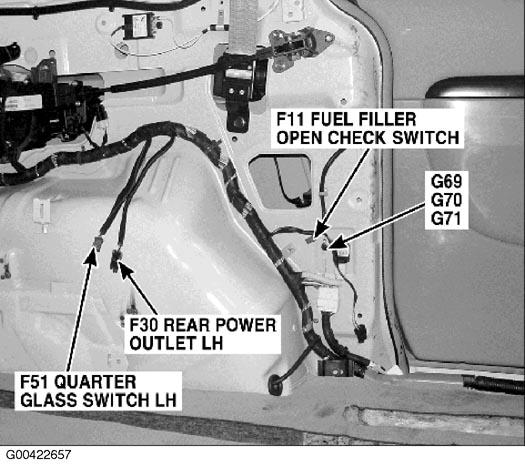

Fig 50: Left "C" Pillar & Wheelwell

G00422657

Courtesy of KIA MOTORS AMERICA, INC.

Fig 51: Left Rear Quarterpanel

G00422658

Courtesy of KIA MOTORS AMERICA, INC.

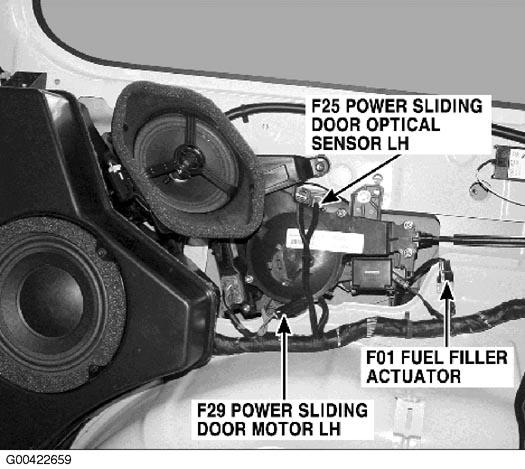

Fig 52: Left Rear Quarterpanel

G00422659

Courtesy of KIA MOTORS AMERICA, INC.

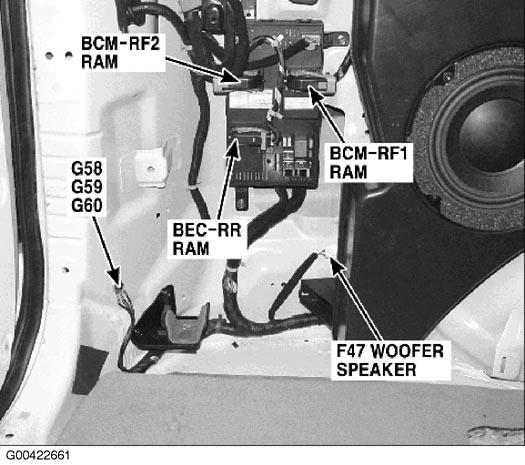

Fig 53: Left Rear Of Cargo Area

G00422661

Courtesy of KIA MOTORS AMERICA, INC.

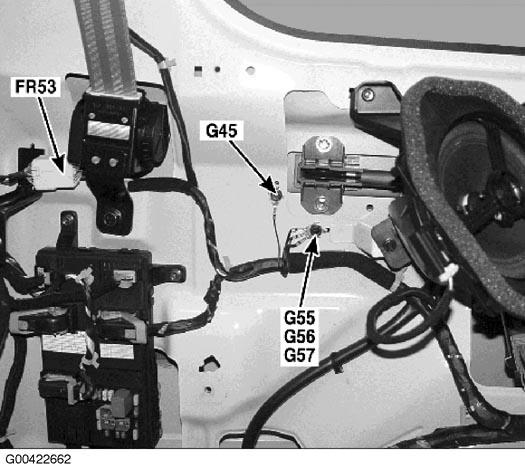

Fig 54: Left Rear Quarterpanel

G00422662

Courtesy of KIA MOTORS AMERICA, INC.

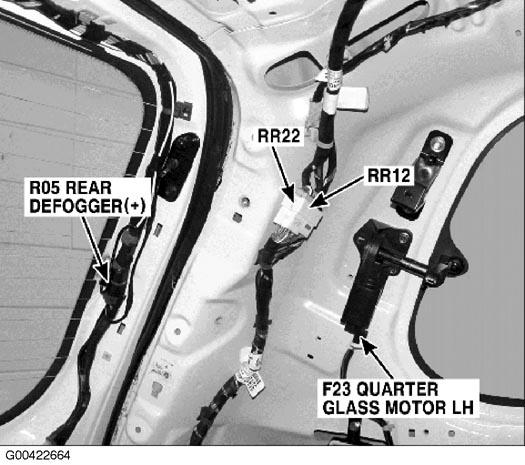

Fig 55: Left "D" Pillar

G00422664

Courtesy of KIA MOTORS AMERICA, INC.

Fig 56: Left "D" Pillar

G00422665

Courtesy of KIA MOTORS AMERICA, INC.

Fig 57: Center Of Roof

G00422666

Courtesy of KIA MOTORS AMERICA, INC.

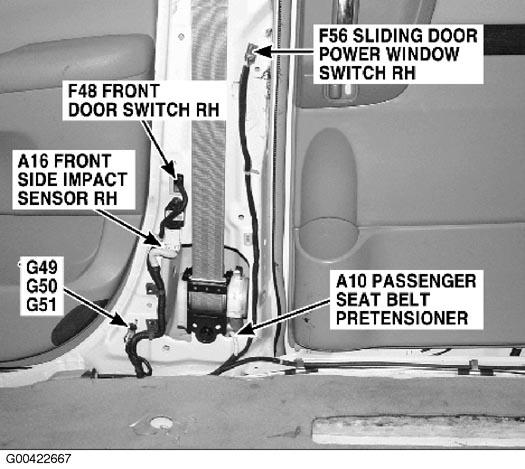

Fig 58: Right "B" Pillar

G00422667

Courtesy of KIA MOTORS AMERICA, INC.

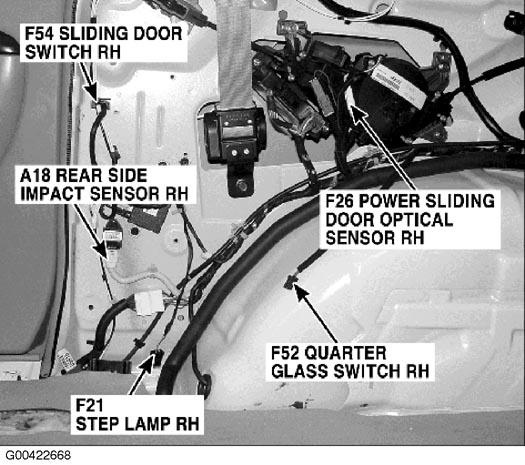

Fig 59: Right "C" Pillar & Wheelwell

G00422668

Courtesy of KIA MOTORS AMERICA, INC.

Fig 60: Right "C" Pillar & Wheelwell

G00422669

Courtesy of KIA MOTORS AMERICA, INC.

Fig 61: Right Rear Quarterpanel

G00422670

Courtesy of KIA MOTORS AMERICA, INC.

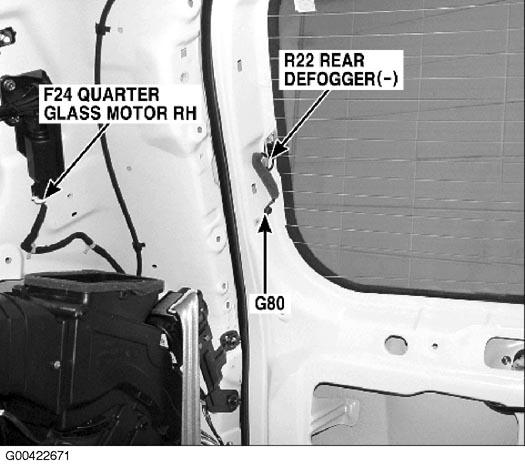

Fig 62: Right "D" Pillar

G00422671

Courtesy of KIA MOTORS AMERICA, INC.

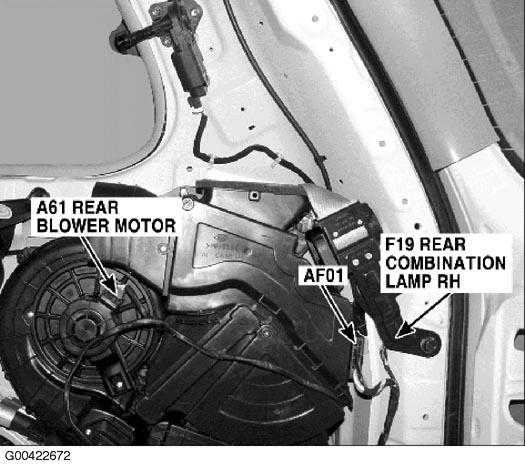

Fig 63: Right "D" Pillar

G00422672

Courtesy of KIA MOTORS AMERICA, INC.

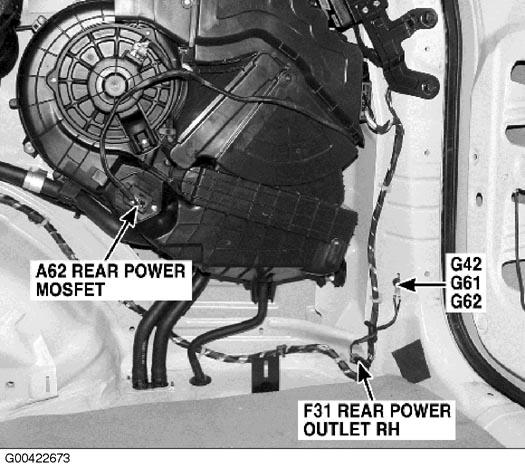

Fig 64: Right Rear Quarterpanel

G00422673

Courtesy of KIA MOTORS AMERICA, INC.

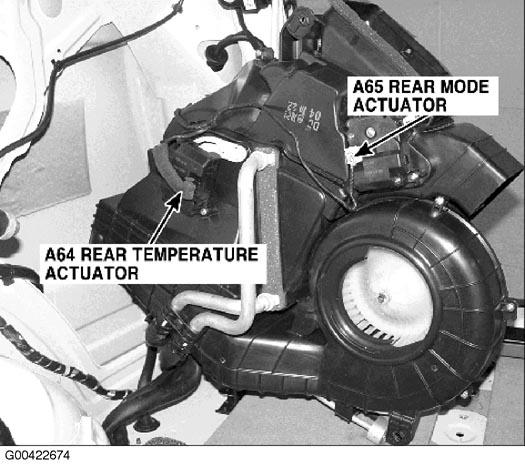

Fig 65: Right Rear Quarterpanel

G00422674

Courtesy of KIA MOTORS AMERICA, INC.

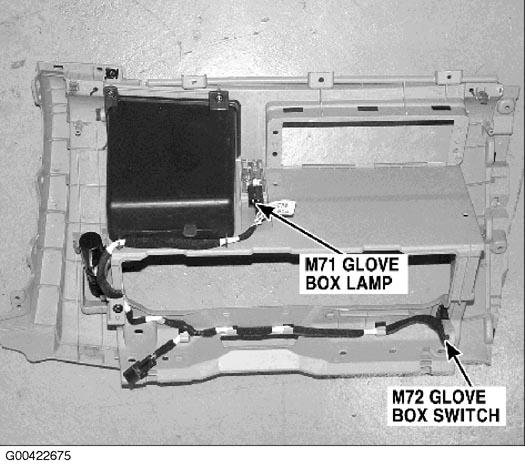

Fig 66: Right Side Of Dash

G00422675

Courtesy of KIA MOTORS AMERICA, INC.

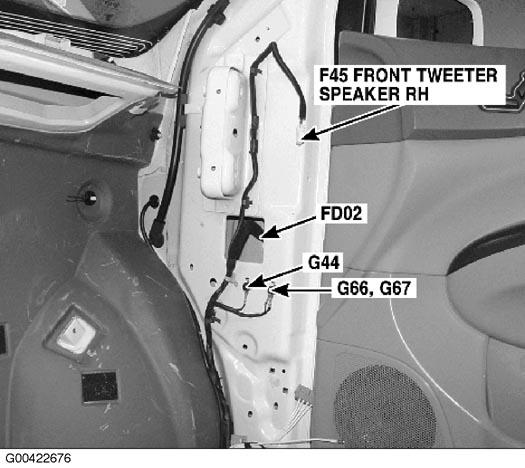

Fig 67: Right "A" Pillar

G00422676

Courtesy of KIA MOTORS AMERICA, INC.

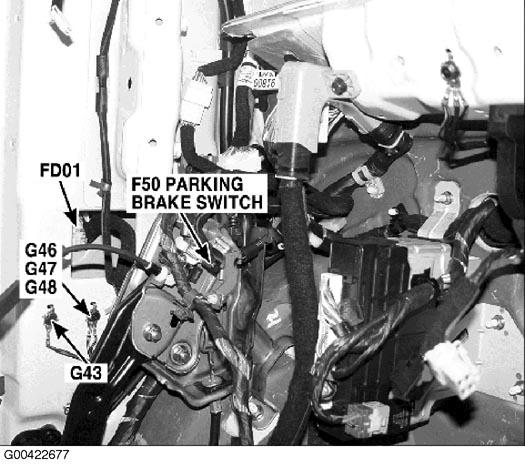

Fig 68: Left Kick Panel

G00422677

Courtesy of KIA MOTORS AMERICA, INC.

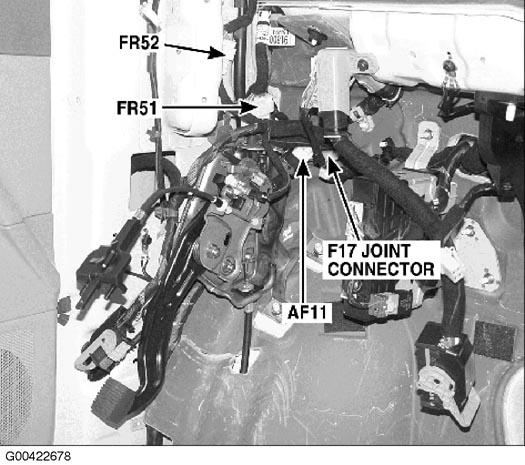

Fig 69: Left Kick Panel

G00422678

Courtesy of KIA MOTORS AMERICA, INC.

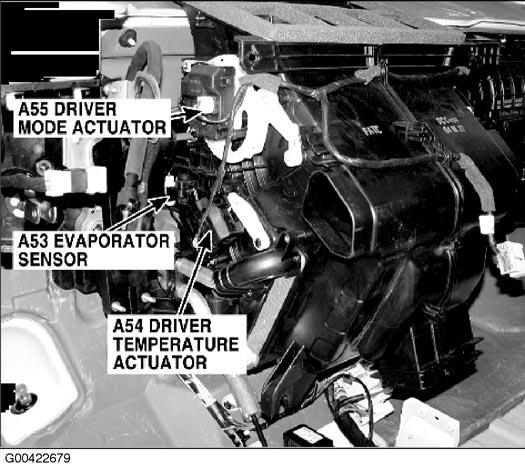

Fig 70: Center Of Dash

G00422679

Courtesy of KIA MOTORS AMERICA, INC.

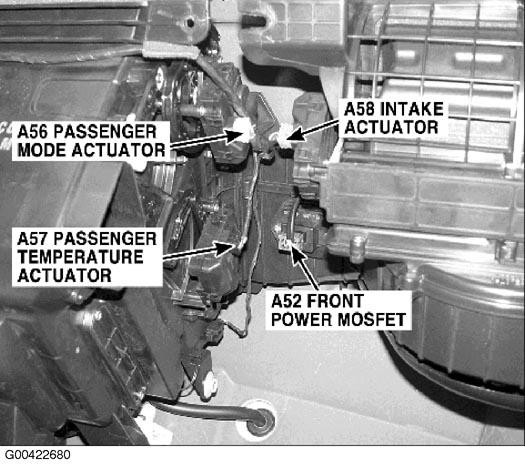

Fig 71: Right Side Of Dash

G00422680

Courtesy of KIA MOTORS AMERICA, INC.

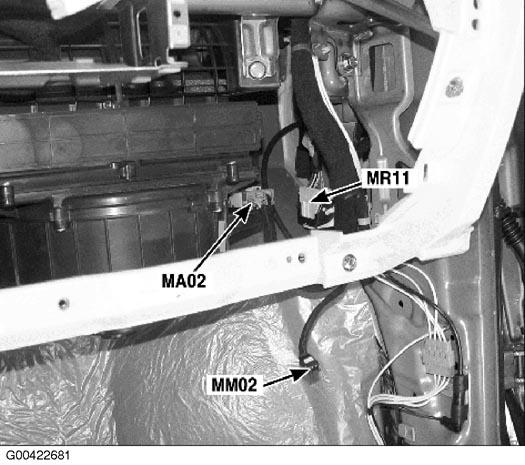

Fig 72: Right End Of Dash

G00422681

Courtesy of KIA MOTORS AMERICA, INC.

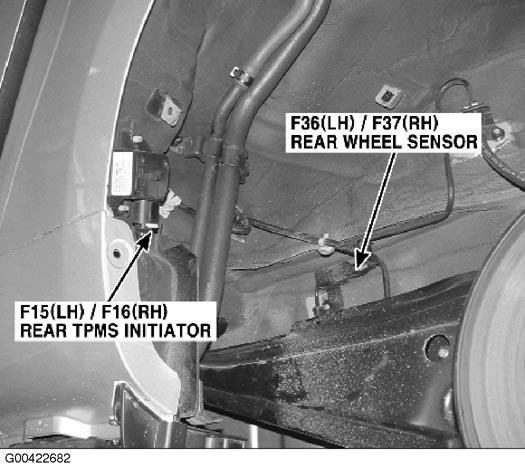

Fig 73: Rear Wheelwells (Left Shown)

G00422682

Courtesy of KIA MOTORS AMERICA, INC.

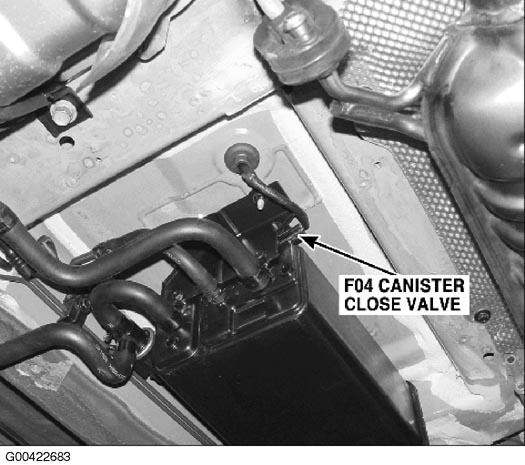

Fig 74: Rear Underside Of Vehicle

G00422683

Courtesy of KIA MOTORS AMERICA, INC.

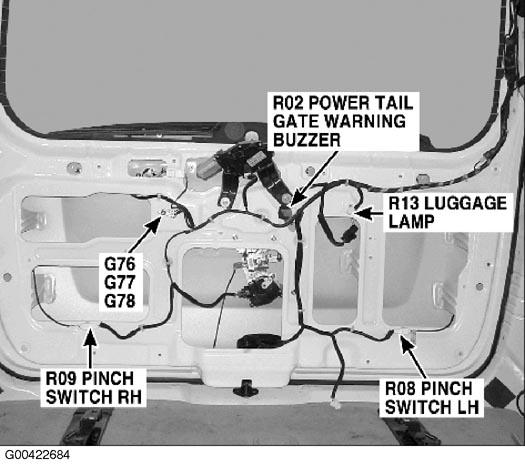

Fig 75: Tailgate

G00422684

Courtesy of KIA MOTORS AMERICA, INC.

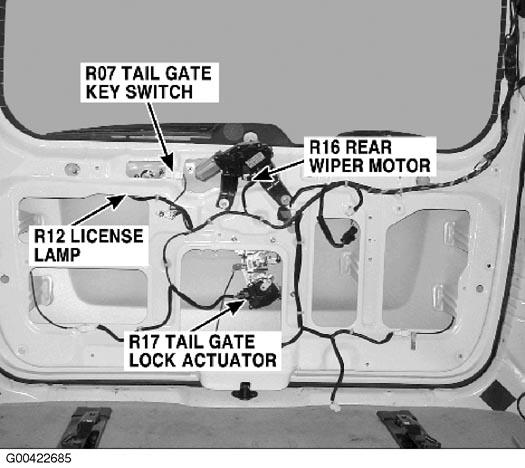

Fig 76: Tailgate

G00422685

Courtesy of KIA MOTORS AMERICA, INC.

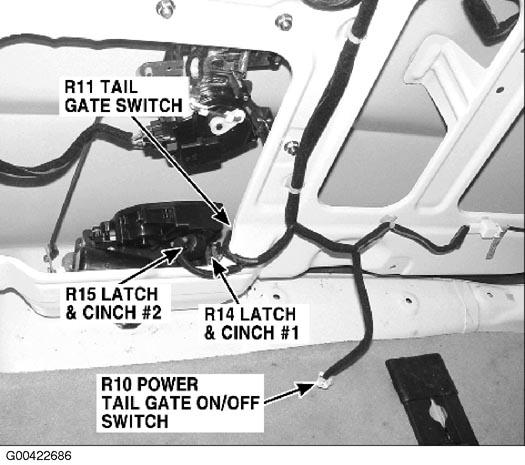

Fig 77: Tailgate

G00422686

Courtesy of KIA MOTORS AMERICA, INC.

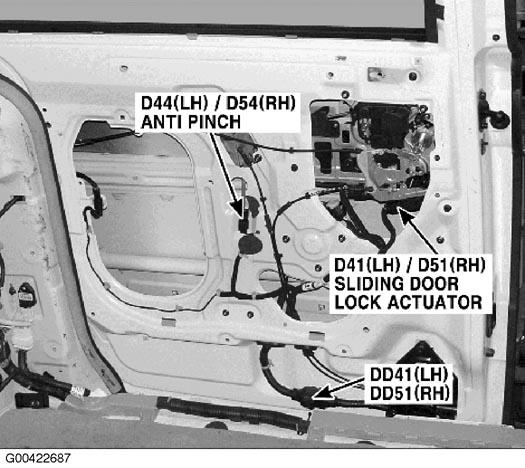

Fig 78: Sliding Doors (Left Shown)

G00422687

Courtesy of KIA MOTORS AMERICA, INC.

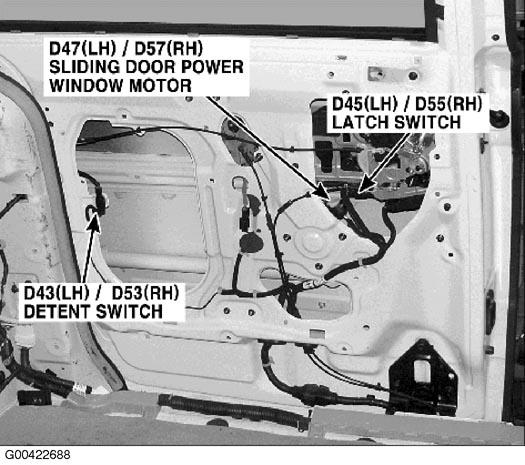

Fig 79: Sliding Doors (Left Shown)

G00422688

Courtesy of KIA MOTORS AMERICA, INC.

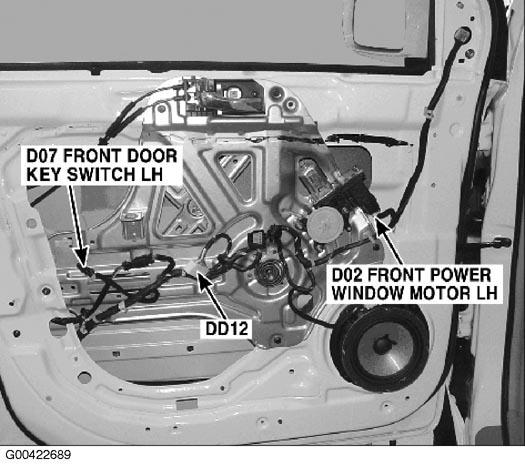

Fig 80: Driver's Door

G00422689

Courtesy of KIA MOTORS AMERICA, INC.

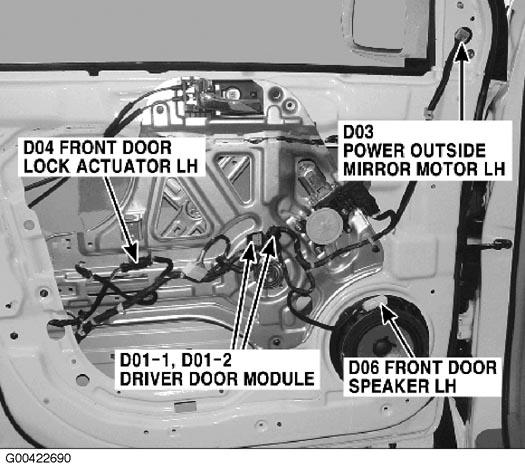

Fig 81: Driver's Door

G00422690

Courtesy of KIA MOTORS AMERICA, INC.

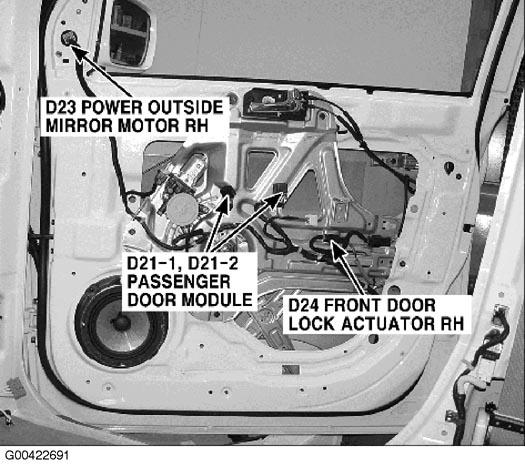

Fig 82: Front Passenger's Door

G00422691

Courtesy of KIA MOTORS AMERICA, INC.

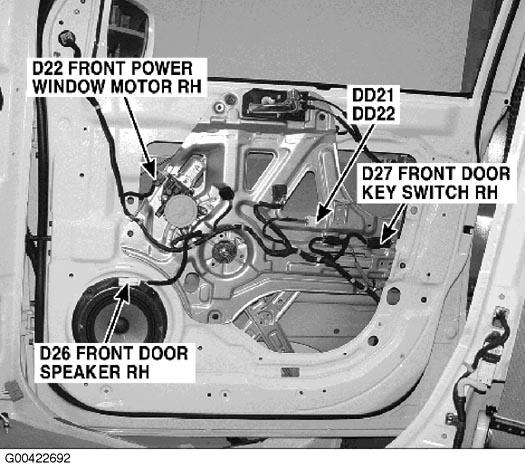

Fig 83: Front Passenger's Door

G00422692

Courtesy of KIA MOTORS AMERICA, INC.

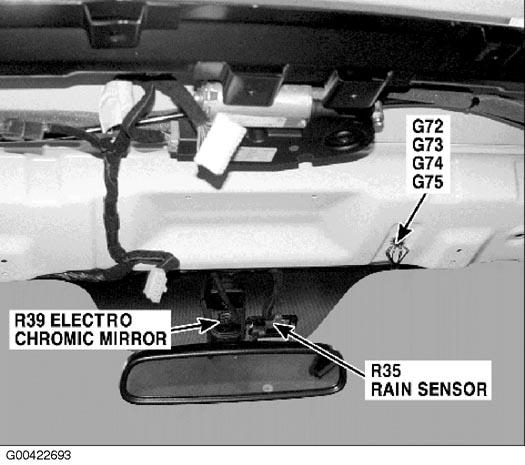

Fig 84: Front Center Of Roof

G00422693

Courtesy of KIA MOTORS AMERICA, INC.

Fig 85: Front Center Of Roof

G00422694

Courtesy of KIA MOTORS AMERICA, INC.

Fig 86: Driver's Seat

G00422695

Courtesy of KIA MOTORS AMERICA, INC.

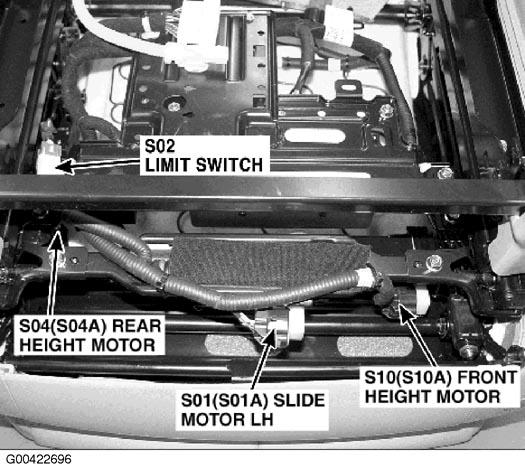

Fig 87: Driver's Seat

G00422696

Courtesy of KIA MOTORS AMERICA, INC.

Fig 88: Front Passenger's Seat

G00422697

Courtesy of KIA MOTORS AMERICA, INC.

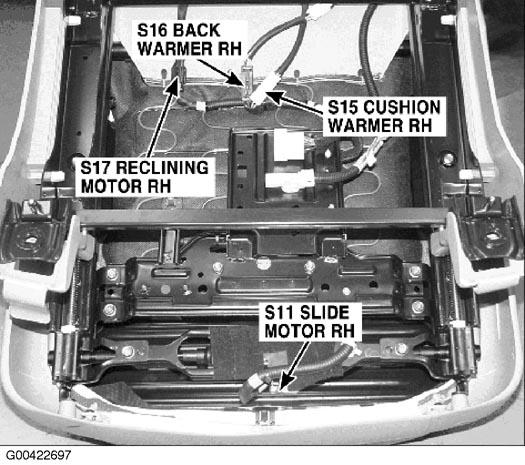

Fig 89: Front Passenger's Seat

G00422698

Courtesy of KIA MOTORS AMERICA, INC.

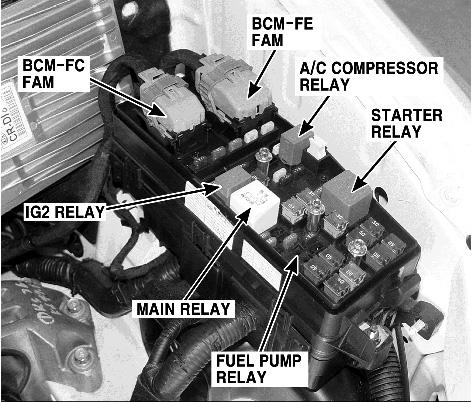

Fig 90: FAM (Front Area Module)

G00450858

Courtesy of KIA MOTORS AMERICA, INC.

Fig 91: Vehicle Overview

G00422700

Courtesy of KIA MOTORS AMERICA, INC.

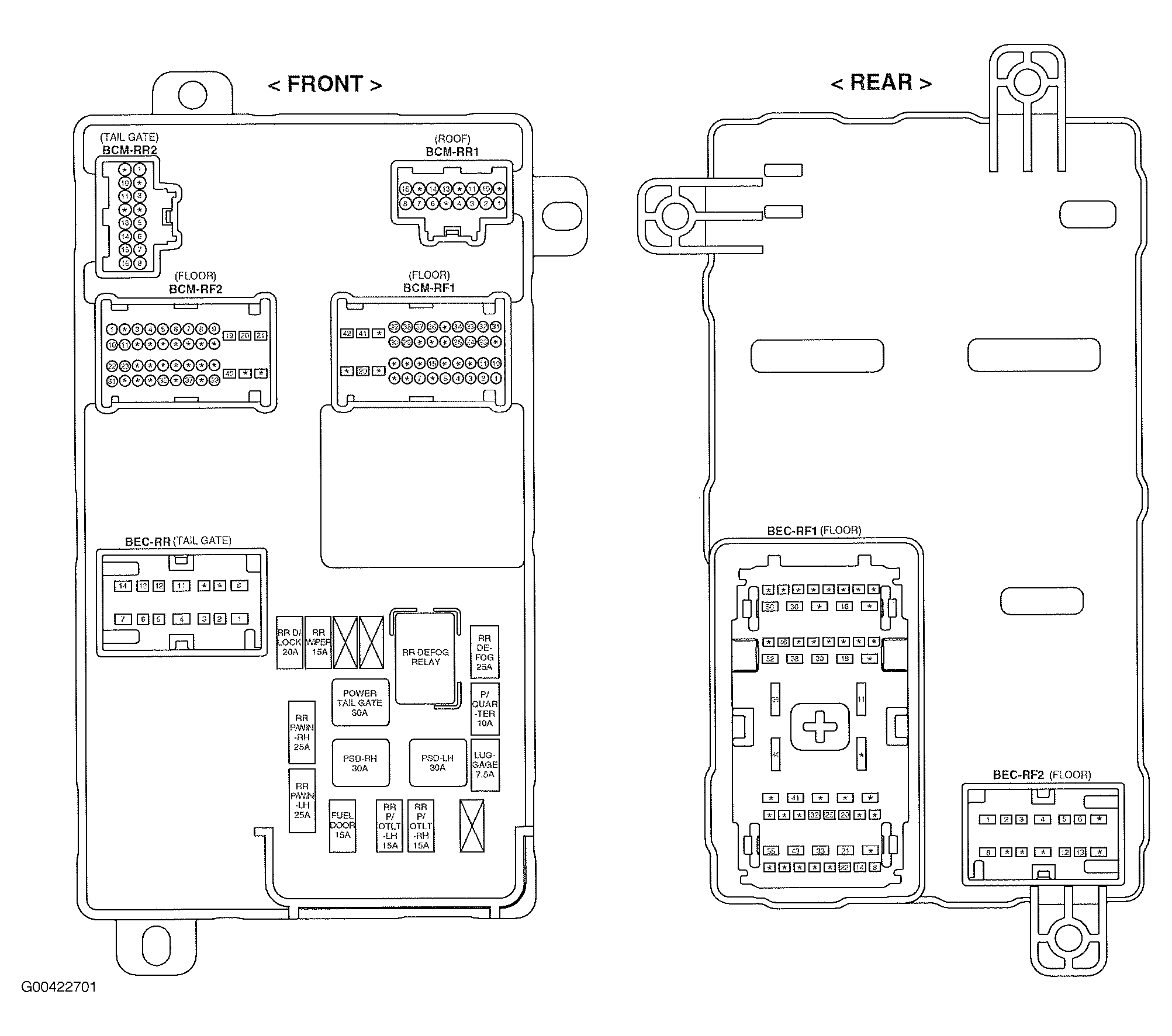

Fig 92: RAM (Rear Area Module)

G00422701

Courtesy of KIA MOTORS AMERICA, INC.
