Abs Control

NORMAL BRAKING without ABS

OPERATION CHART

	Inlet valve(EV)	Outlet valve(AV)	Pump motor
Operation	Open	Close	OFF

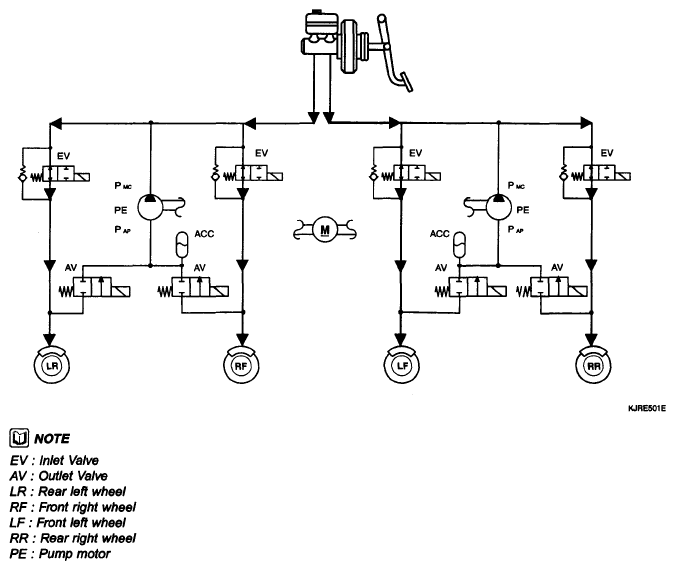

Fig 1: ABS Control Circuit Diagram - Normal Braking Without ABS

Courtesy of KIA MOTORS AMERICA, INC.

DECREASE MODE

OPERATION CHART

	Inlet valve(EV)	Outlet valve(AV)	Pump motor
Operation	Close	Open	ON(Motor speed control)

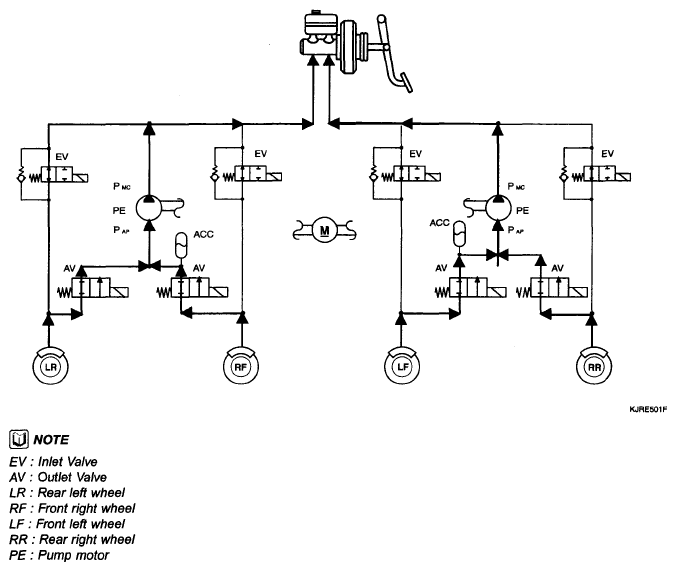

Fig 2: ABS Control Circuit Diagram - Decrease Mode

Courtesy of KIA MOTORS AMERICA, INC.

HOLD MODE

OPERATION CHART

	Inlet valve(EV)	Outlet valve(AV)	Pump motor
Operation	Close	Close	OFF

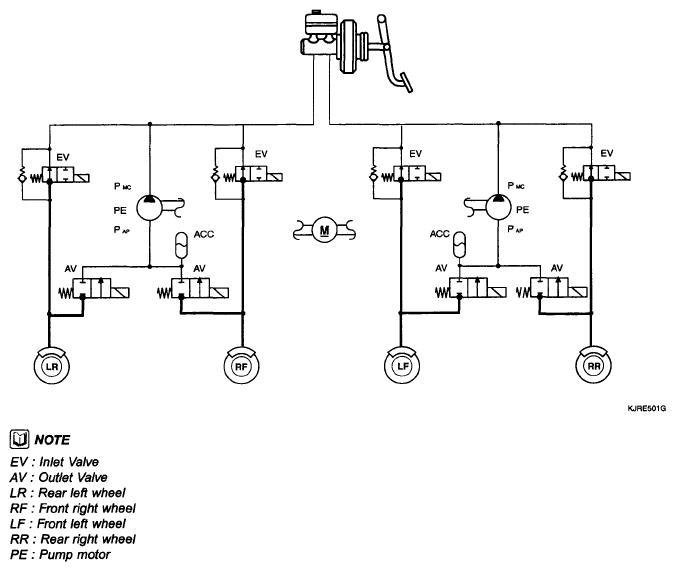

Fig 3: ABS Control Circuit Diagram - Hold Mode

Courtesy of KIA MOTORS AMERICA, INC.

INCREASE MODE

OPERATION CHART

	Inlet valve(EV)	Outlet valve(AV)	Pump motor
Operation	Open	Close	OFF

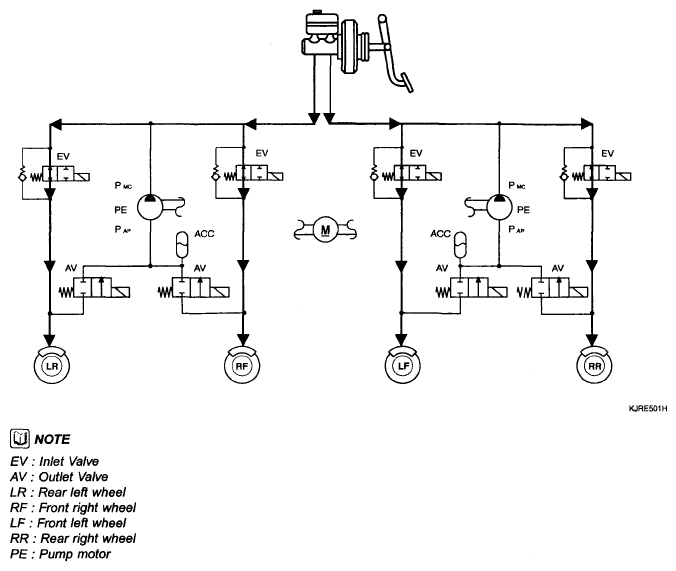

Fig 4: ABS Control Circuit Diagram - Increase Mode

Courtesy of KIA MOTORS AMERICA, INC.
