Schematic Diagram

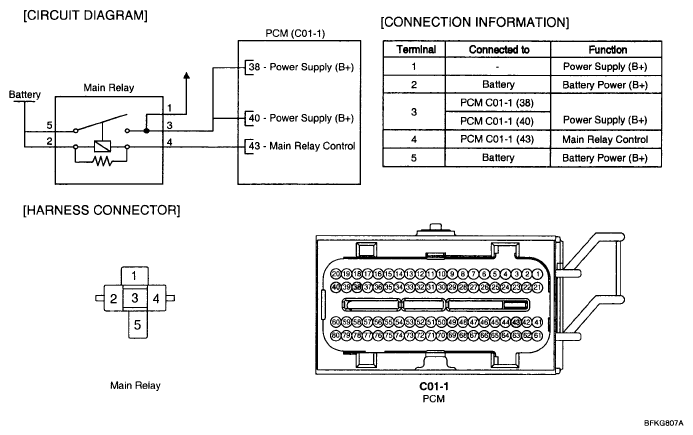

Fig 1: Schematic Diagram - System Voltage Low
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
