Circuit Diagram: Notes

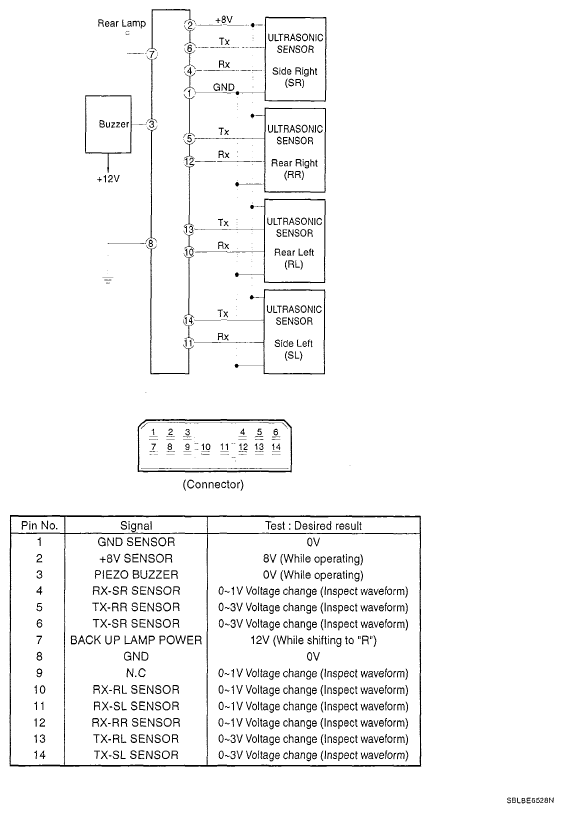

Fig 1: Body Electrical System Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
