Engine Control Module (ECM): Replacement

  1. Turn ignition switch off.
  2. Disconnect the battery (-) cable from the battery.
  3. Remove the resonator (A).
    Fig 1: Identifying Resonator
    G05118302Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the ECM connectors (A).

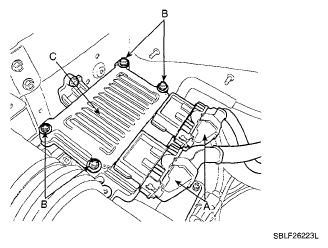

    Fig 2: Identifying ECM & Connectors
    G05118303Courtesy of KIA MOTORS AMERICA, INC.
  5. Unscrew the ECM mounting bolts (B) and remove the ECM from the bracket (C).
  6. Install new ECM

    ECM installation bolts : 9.8-11.8 N.m (1.0-1.2 kgf.m, 7.2-8.7 lb.ft)
