Component Location

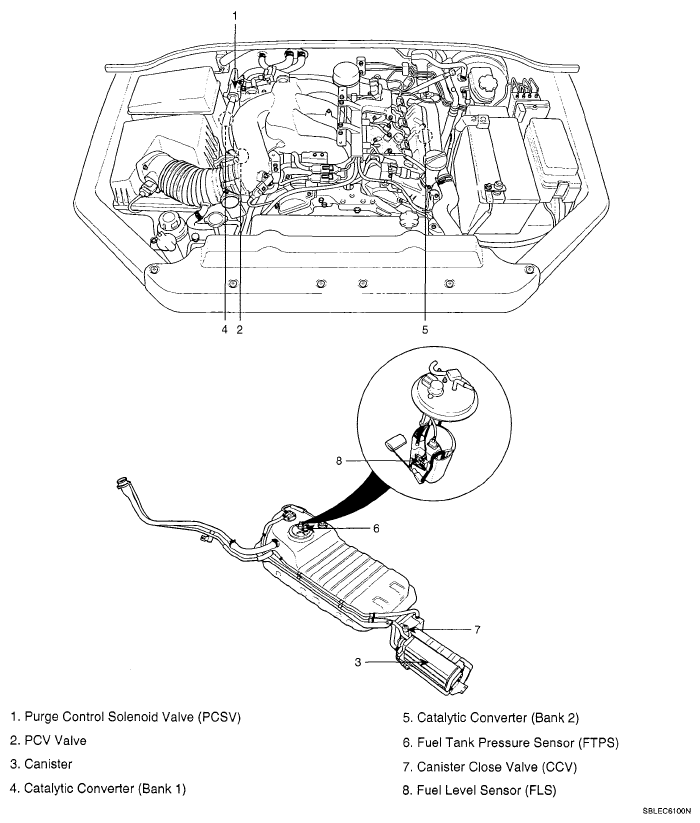

Fig 1: Emissions Control System Component Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
