Manual Transaxle











SECTION VIEW

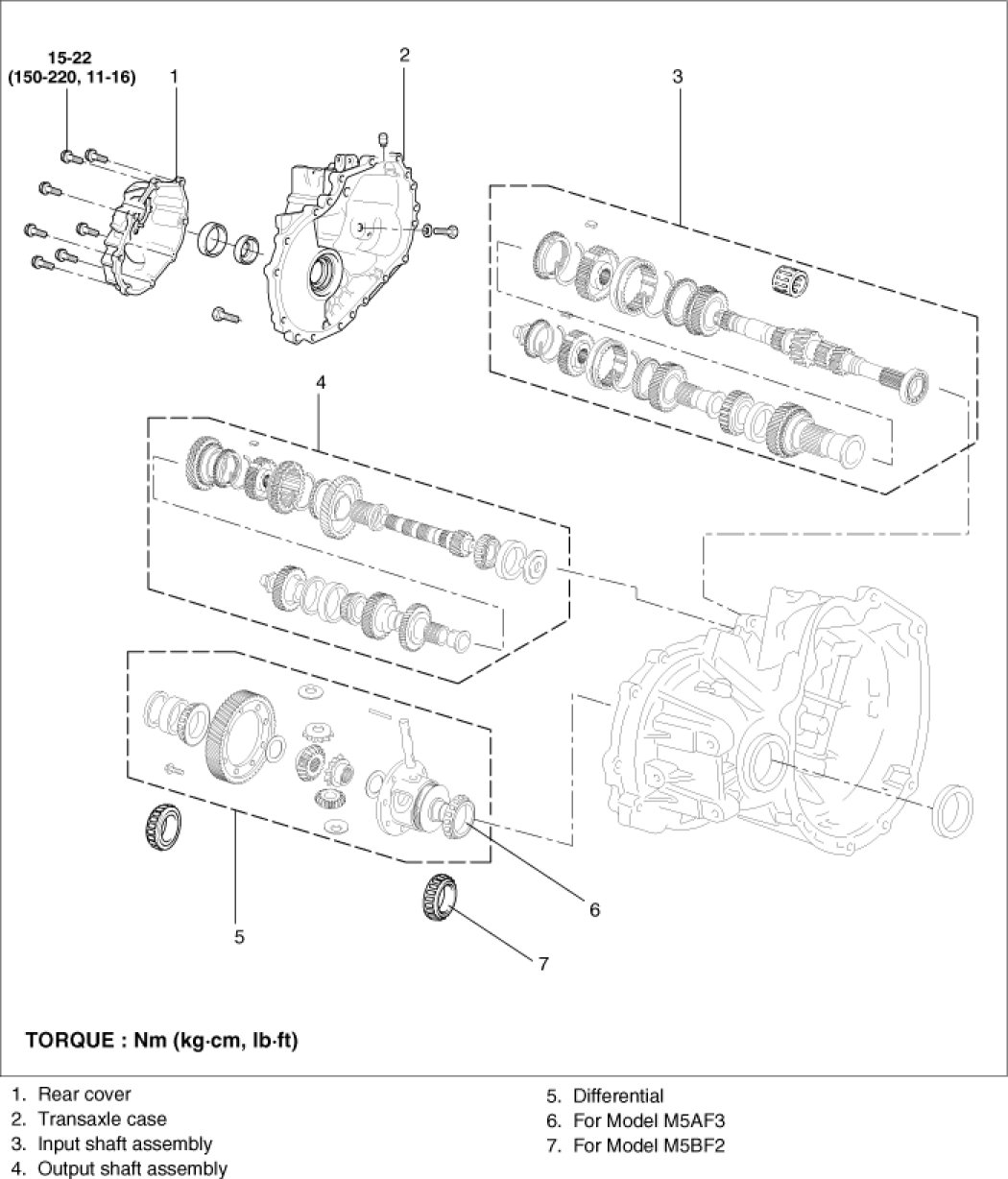

COMPONENTS(1)

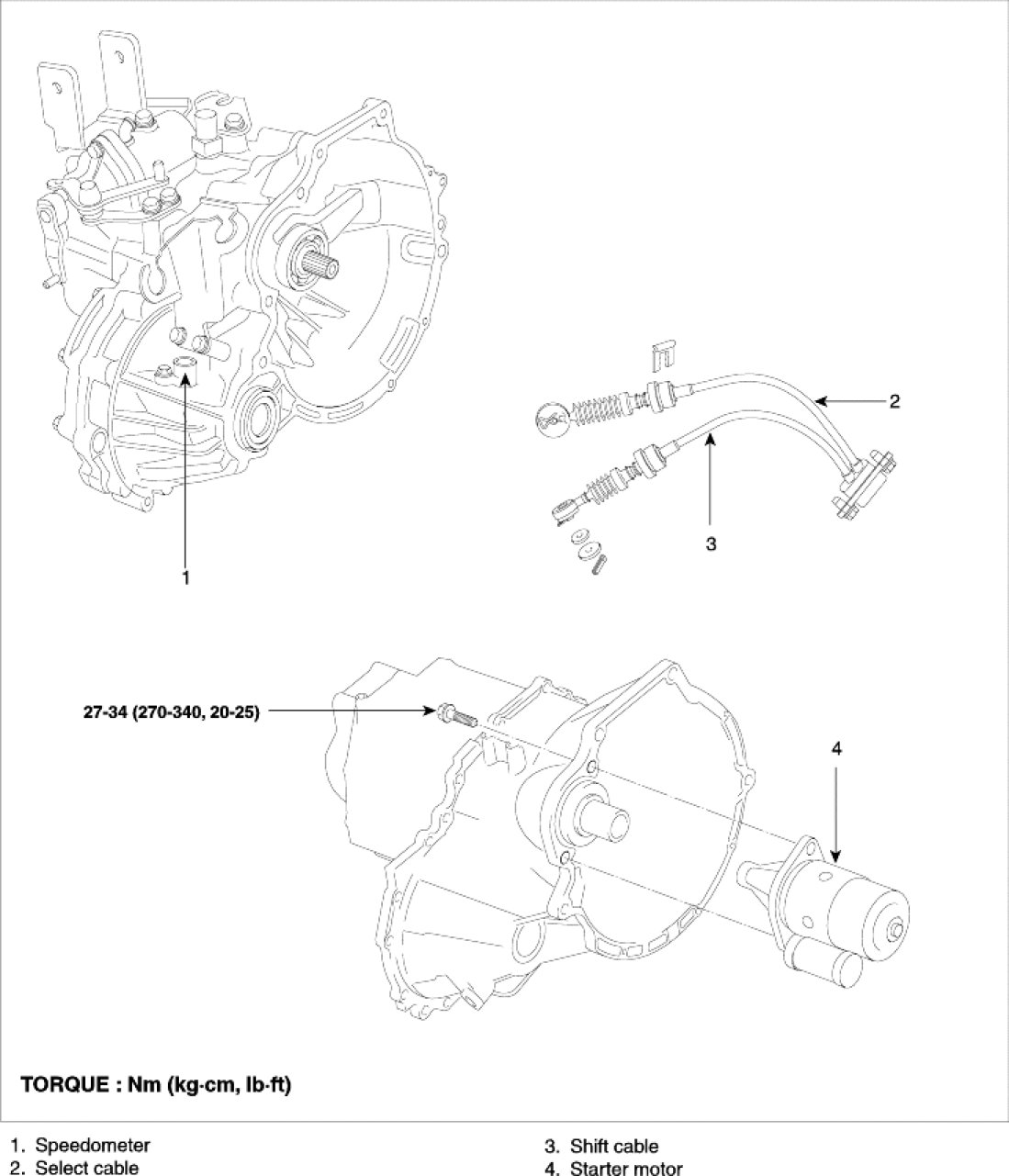

COMPONENTS(2)










COMPONENTS(3)










COMPONENTS(4)
