Disassembly





DISASSEMBLY

RELIEF PLUNGER
1. Remove the relief plunger.

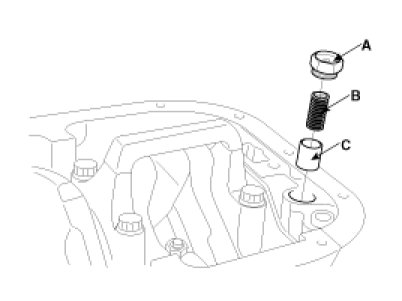

Remove the plug(A), spring(B) and relief plunger(C).
