Input Shaft: Disassembly

  1. Remove the front bearing using the special tool (09432-33200).
    Fig 1: Removing Input Shaft Front Bearing
    G00333291Courtesy of KIA MOTORS AMERICA, INC.

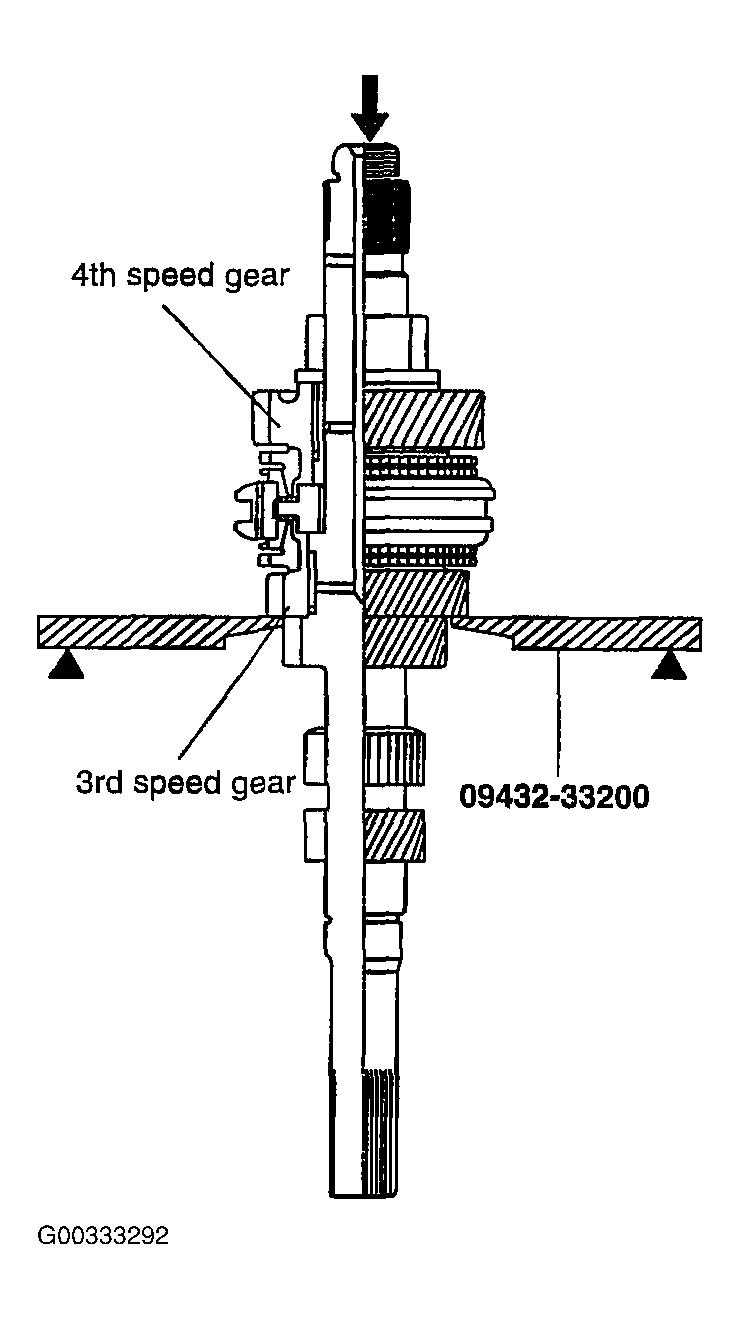

  2. Remove the inner ring, spacer, 4th gear, needle roller bearing, bearing sleeve, synchronizer rings, 3rd and 4th gear synchronizer hub and sleeve and 3rd gear all together using the special tool (09432-33200).
    Fig 2: Disassembling Input Shaft
    G00333292Courtesy of KIA MOTORS AMERICA, INC.
