Sectional View

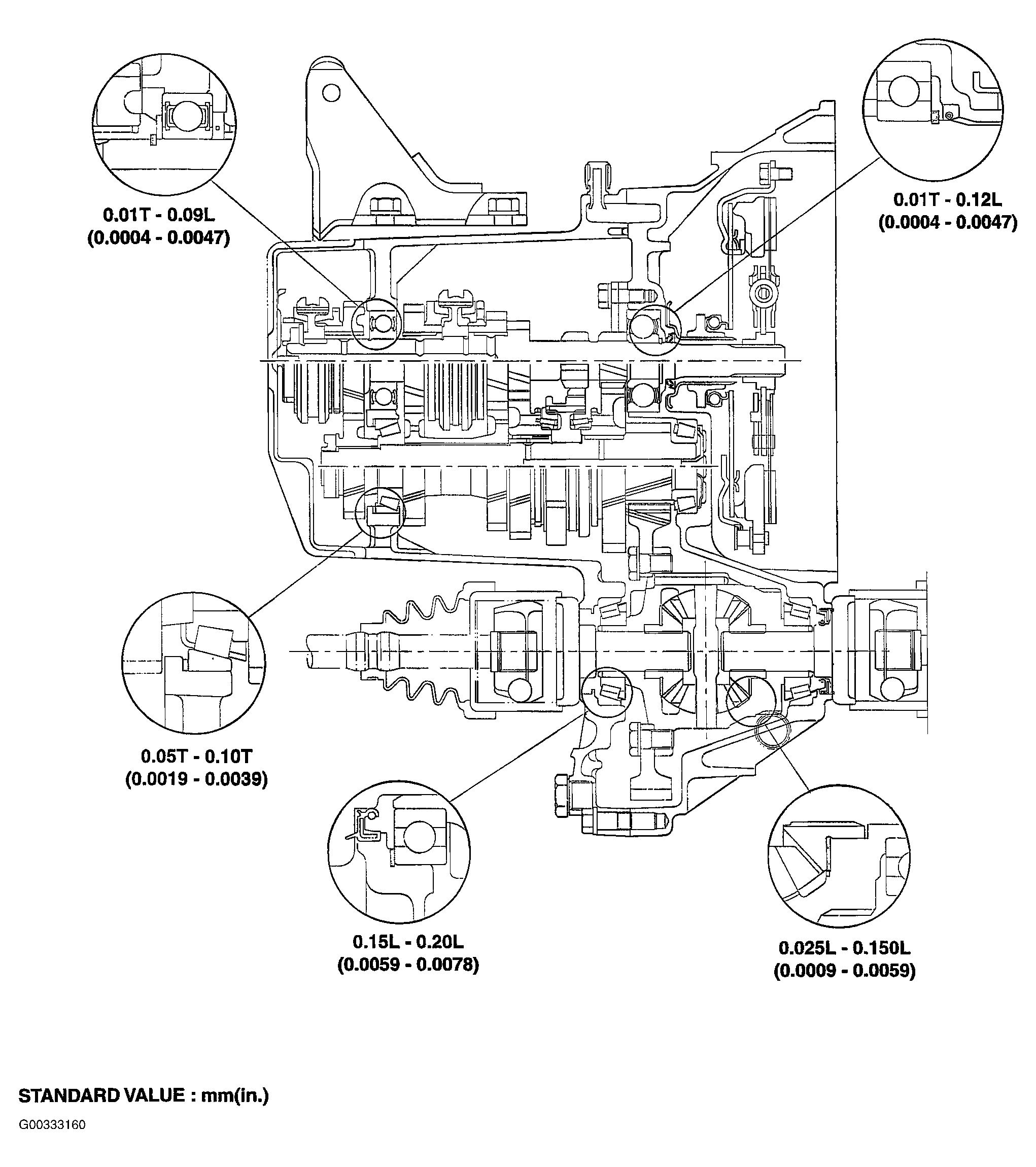

Fig 1: Manual Transaxle Sectional View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
