Output Shaft: Components

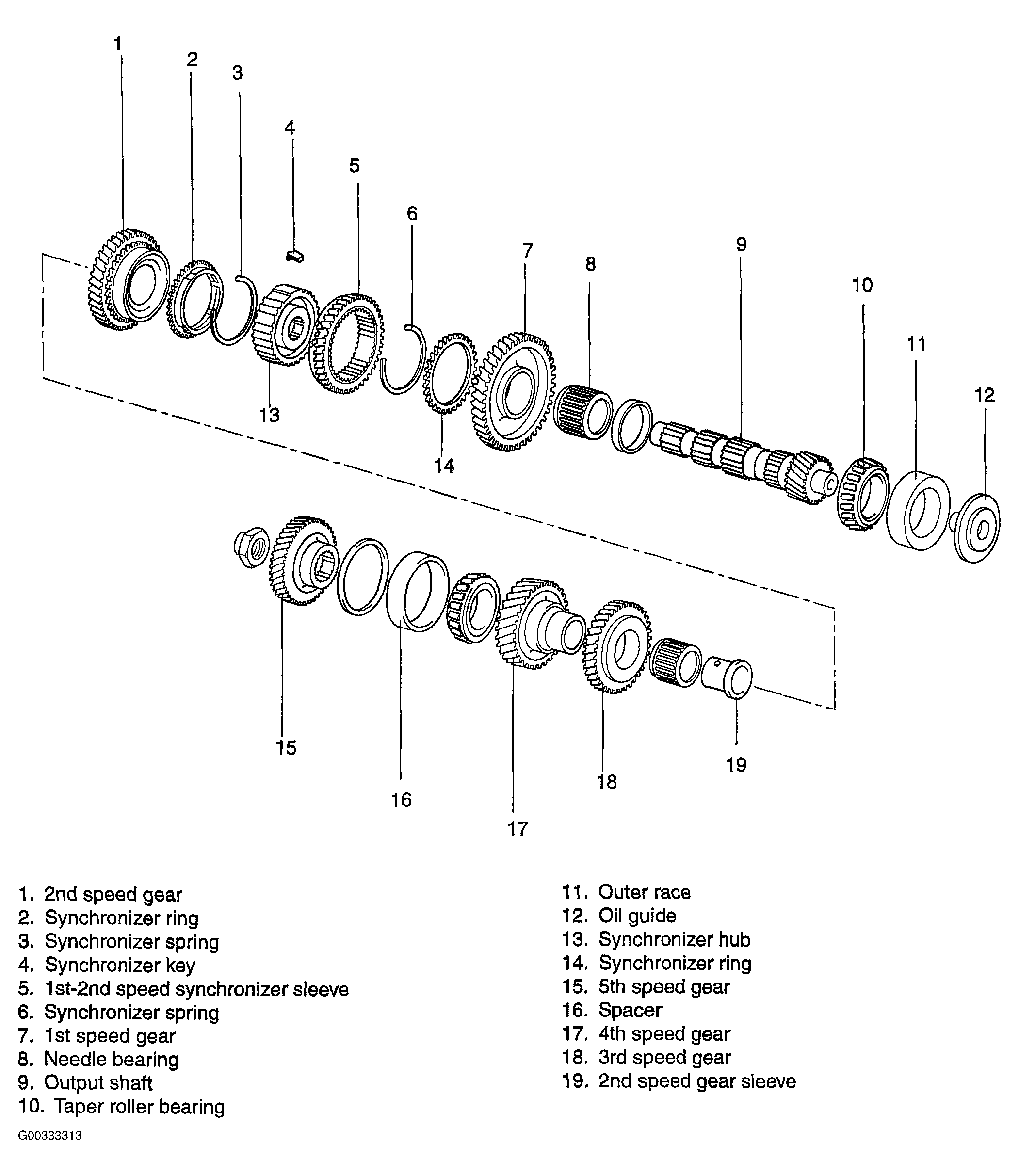

Fig 1: Exploded View Of Output Shaft Components

G00333313

Courtesy of KIA MOTORS AMERICA, INC.
