Trip Computer Connector Configuration

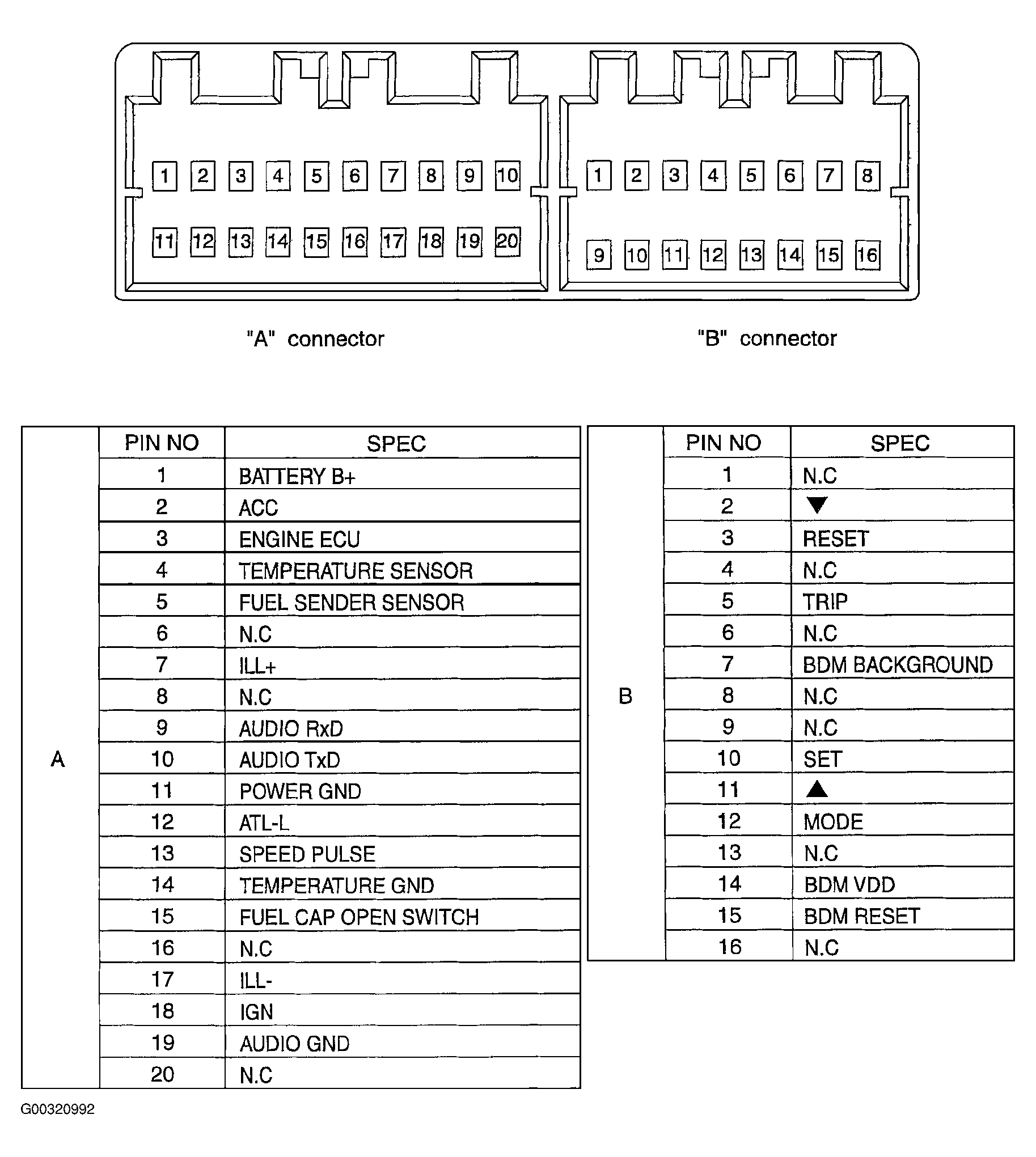

Fig 1: Identifying Trip Computer Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
