Front Suspension System: Components

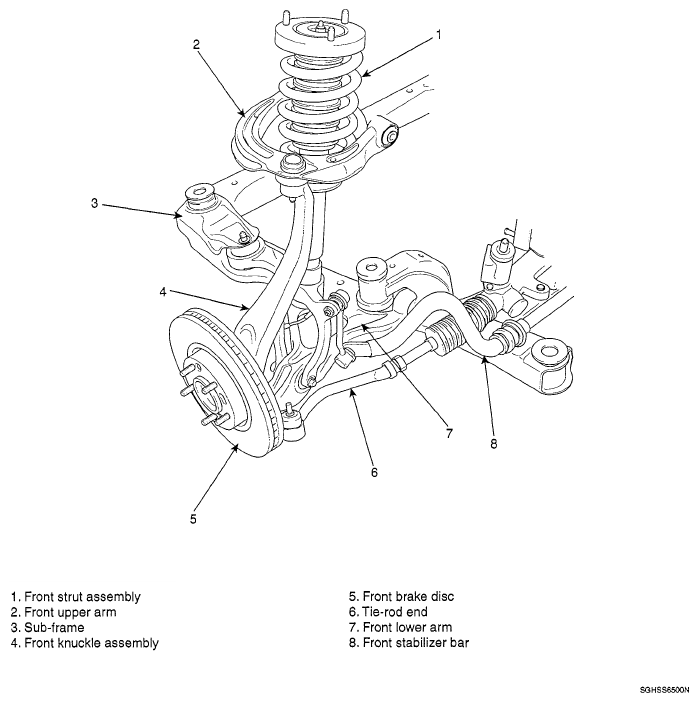

Fig 1: Identifying Front Suspension System Components

G05116962

Courtesy of KIA MOTORS AMERICA, INC.
