Front Strut Assembly: Installation

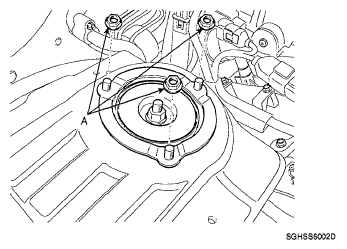

Install the front strut assembly to the wheel housing panel by tightening the mounting nuts (A).
Tightening torque N.m (kgf.m, lb-ft):

45 ~ 60 (4.5 ~ 6.0, 33 ~ 43)

Fig 1: Identifying Front Strut Assembly Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Connect the strut assembly (B) with the mounting fork (A) and then tighten the bolt (C).
Tightening torque N.m (kgf.m, lb-ft):

60 ~ 80 (6.0 ~ 8.0, 43 ~ 58)

Fig 2: Identifying Strut Assembly And Mounting Fork
Courtesy of KIA MOTORS AMERICA, INC.
Connect the mounting fork (A) with the lower arm (B) and tighten the through bolt (C) and nut.
Tightening torque N.m (kgf.m, lb-ft):

140 ~ 160 (14.0 ~ 16.0, 101 ~ 116)

Fig 3: Identifying Mounting Fork With Lower Arm And Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Connect the stabilizer link (A) with the mounting fork and tighten the nut (B).
Tightening torque N.m (kgf.m, lb-ft):

100 ~ 120 (10.0 ~ 12.0, 72 ~ 81)

Fig 4: Identifying Stabilizer Link, Mounting Fork And Nut
Courtesy of KIA MOTORS AMERICA, INC.
Install the brake hose and wheel speed sensor bracket to front strut assembly by tightening the mounting bolts.

Fig 5: Identifying Brake Hose And Wheel Speed Sensor Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Install the front wheel and tire.
Tightening torque N.m (kgf.m, lb-ft):

90 ~ 110 (9.0 ~ 11.0, 65 ~ 80)
