Component Inspection

Check transponder status
1. IGN "ON" & Engine "OFF" with key intended to register.
2. Monitor the "KEY STATUS" Parameter on the Scan tool.
  Specification: 'VIRGIN' or 'LEARNT'

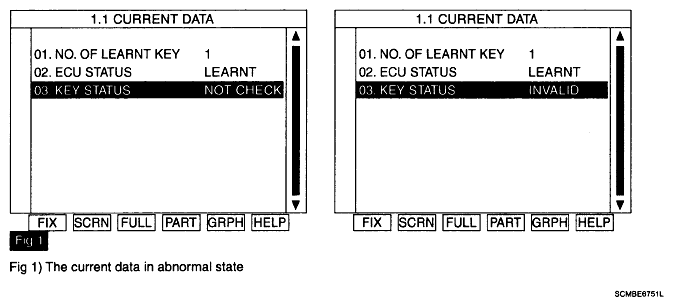

  Fig 1: Display Screen - 03. KEY STATUS
  Courtesy of KIA MOTORS AMERICA, INC.
3. Is the measured voltage within specifications?
  YES : Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

  NO : Substitute with a known-good transponder and check for proper operation.

  If the problem is corrected, replace transponder and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
