Body & Frame: Windows: Interior: Console: Components

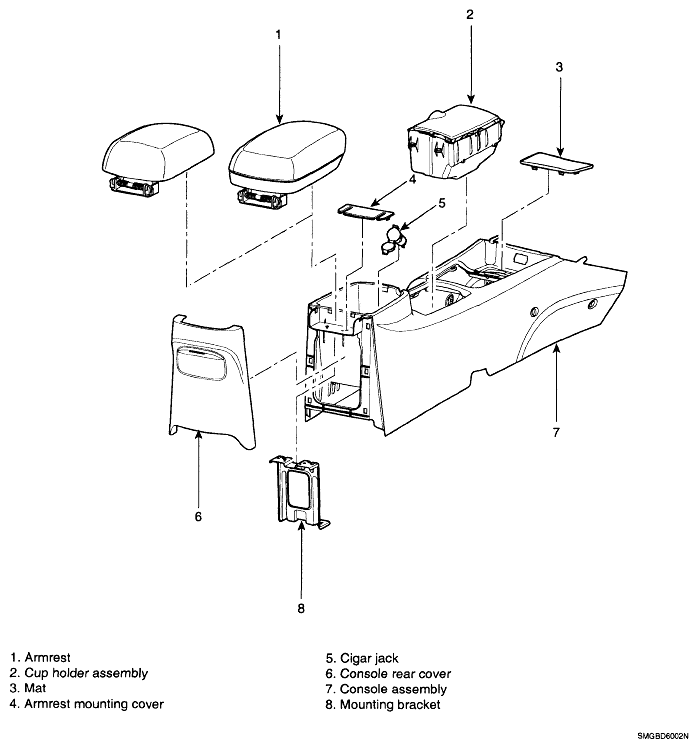

Fig 1: Exploded View Of Interior Console Components
G04806088Courtesy of KIA MOTORS AMERICA, INC.
