Abs Circuit Diagram: Notes

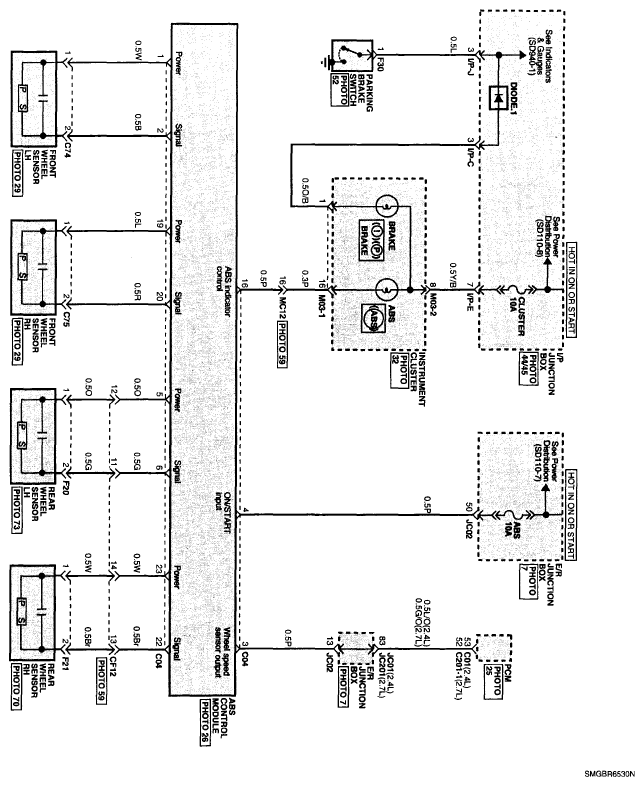

Fig 1: ABS Circuit Diagram (1 Of 2)
G04805890Courtesy of KIA MOTORS AMERICA, INC.

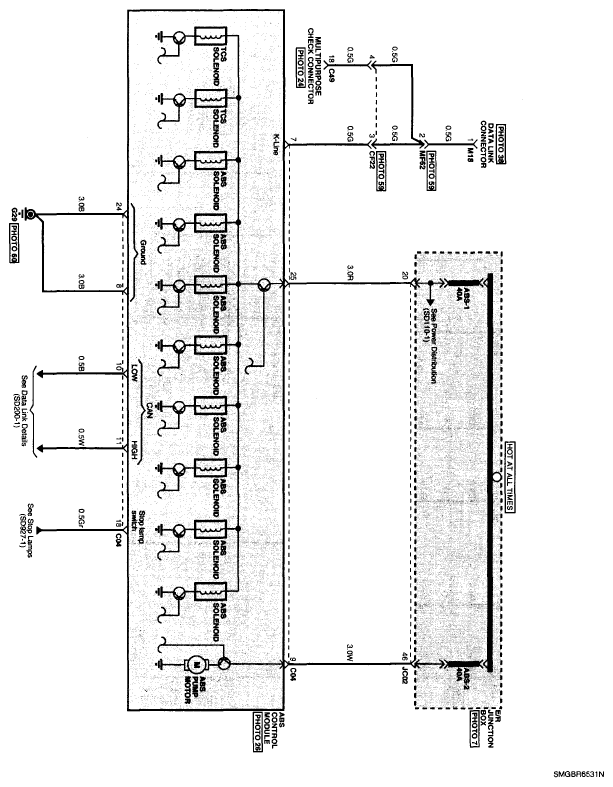

Fig 2: ABS Circuit Diagram (2 Of 2)
G04805891Courtesy of KIA MOTORS AMERICA, INC.
