Alarm Module: Service and Repair

REMOVAL

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad..

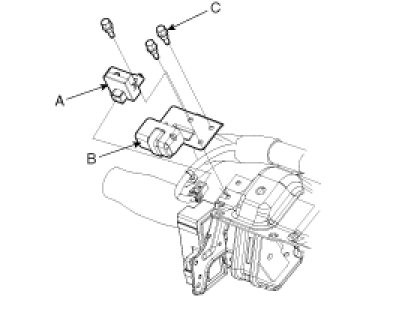

3. Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (A) with bracket (B) located on the cowl cross bar after loosening three shear bolts (C).

NOTE:
- Punch the shear bolt using a centering punch.
- And drill its head off with a drill bit.
- Becarefull not to damage the SMARTRA unit.





INSTALLATION

1. Install the immobilizer contorl unit and bracket after connecting the unit connector.

NOTE:
- Tighten the shear bolt unit the bolt head break off.

2. Install the crash pad.
