Front Fender Liner: Service and Repair

FRONT MUD GUARD AND WHEEL GUARD REPLACEMENT

NOTE:
a. When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damaged.
b. Put on gloves to protect your hands.
c. Take care not to scratch the body surface.

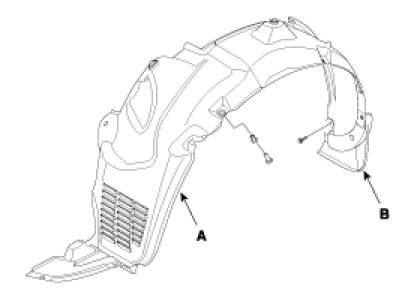

1. Remove the mud guard (B).
2. Remove the wheel guard (A).




3. Installation is the reverse of removal.
