Blower Motor: Service and Repair





REPLACEMENT

1. Disconnect the negative (-) battery terminal.

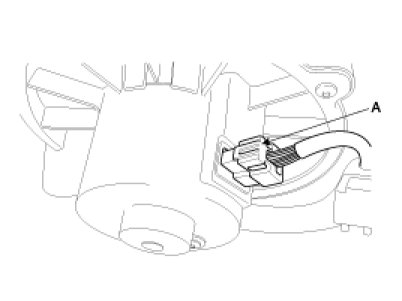

2. Disconnect the connector (A) of the blower motor.

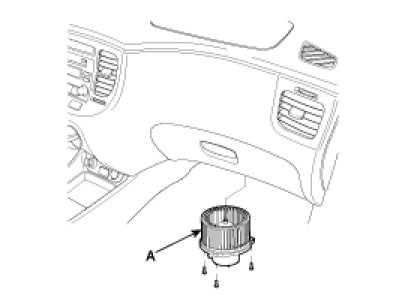

3. Remove the blower motor (A) after loosening the mounting screws.




4. Installation is the reverse order of removal.
