Combination Switch: Testing and Inspection


INSPECTION

LIGHTING SWITCH INSPECTION

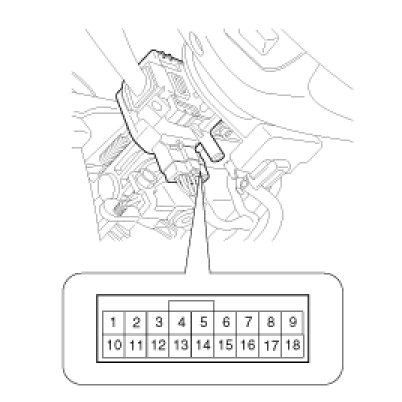

With the multi function switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the multi-function switch.

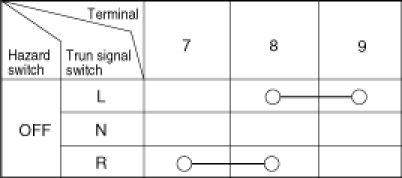

TURN SIGNAL SWITCH
