Windshield Washer Motor: Service and Repair

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

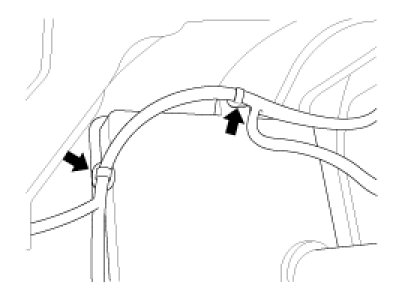

2. Remove the wire harness on the front washer reservoir.




3. Remove the tires.
4. Remove the wheel guide.
5. Remove the washer hose and the washer motor connector.

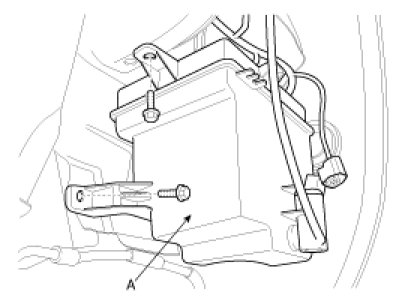

6. Remove the washer reservoir (A) after removing 3 bolts.




7. Installation is the reverse of removal.
