Combination Switch: Service and Repair

REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Remove the steering column upper and lower shrouds (A) after removing 3 screws.

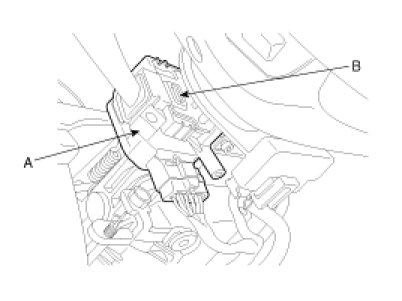

3. Remove the light switch (A) by pushing the lock pin (B) after disconnecting the connector.




4. Remove the wiper switch (A) by pushing the lock pin (B) after disconnecting the connector.




5. Installation is the reverse of removal.
