Windshield Washer Switch: Service and Repair

REPLACEMENT

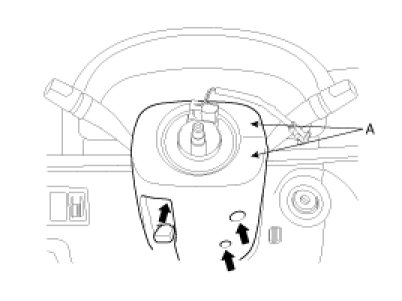

1. Remove the steering column upper and lower shrouds (A) after removing 3 screws.

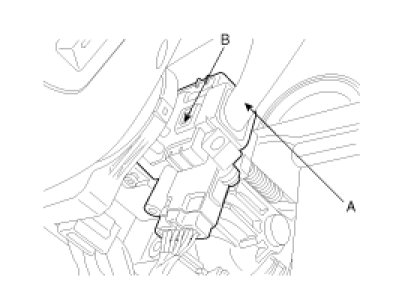

2. Remove the wiper switch (A) by pushing the lock pin (B) after disconnecting the connector.




3. Installation is the reverse of removal.
