Components Location

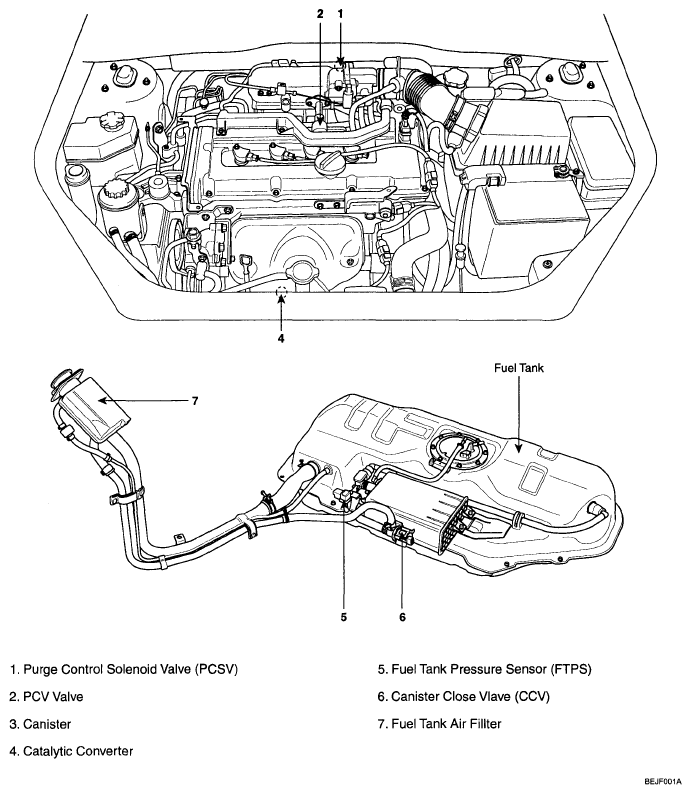

Fig 1: EVAP System Component Location (1 Of 2)
G04861986Courtesy of KIA MOTORS AMERICA, INC.

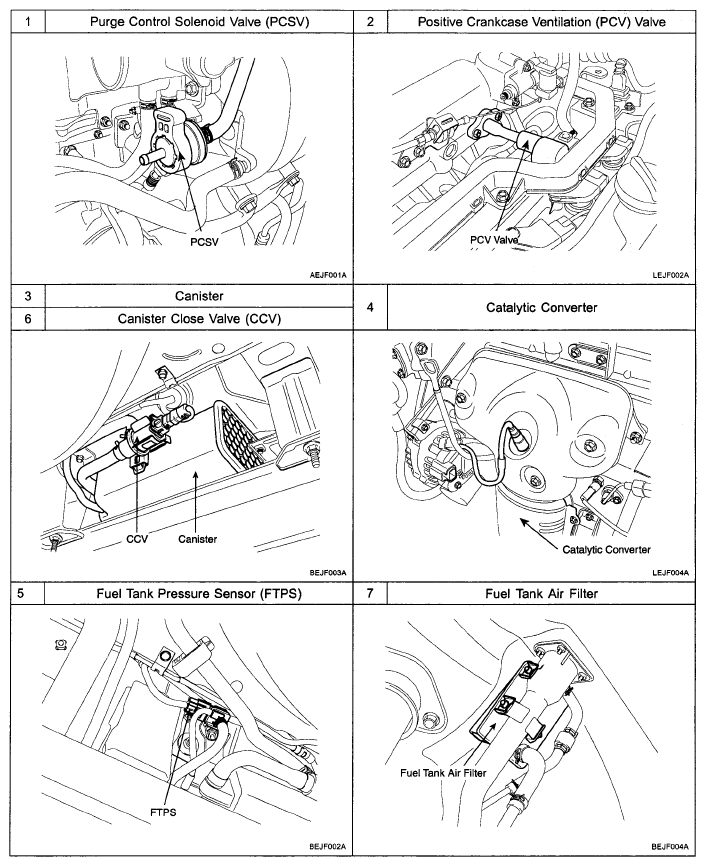

Fig 2: EVAP System Component Location (2 Of 2)
G04861987Courtesy of KIA MOTORS AMERICA, INC.
