Manual Valve

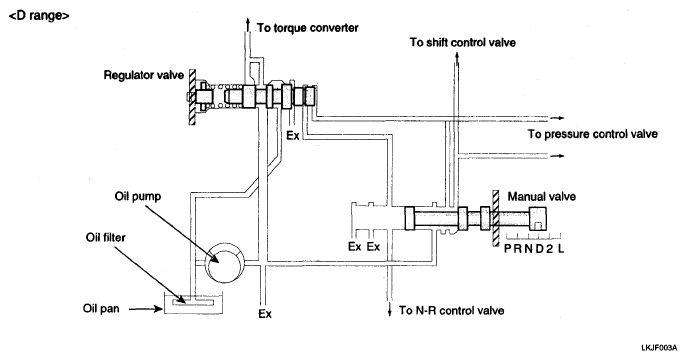

Fig 1: Manual Valve Operation Diagram - "D" Range
Courtesy of KIA MOTORS AMERICA, INC.

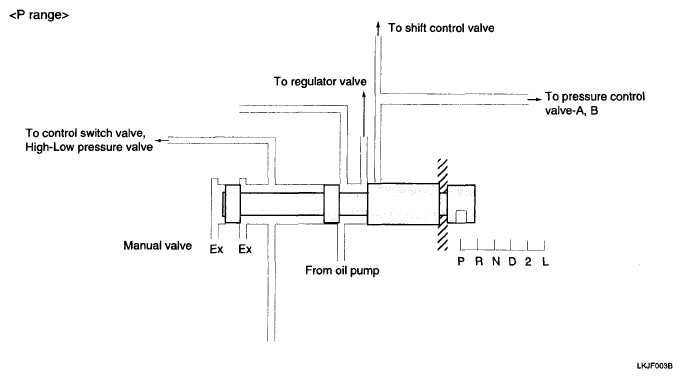

Fig 2: Manual Valve Operation Diagram - "P" Range
Courtesy of KIA MOTORS AMERICA, INC.

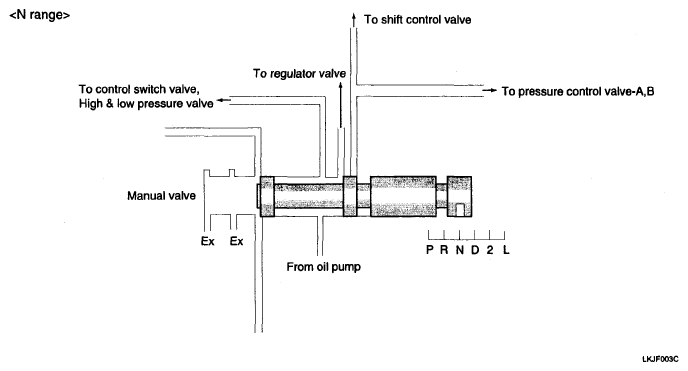

Fig 3: Manual Valve Operation Diagram - "N" Range
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
