Cabin Temperature Sensor / Switch: Service and Repair

REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad. .

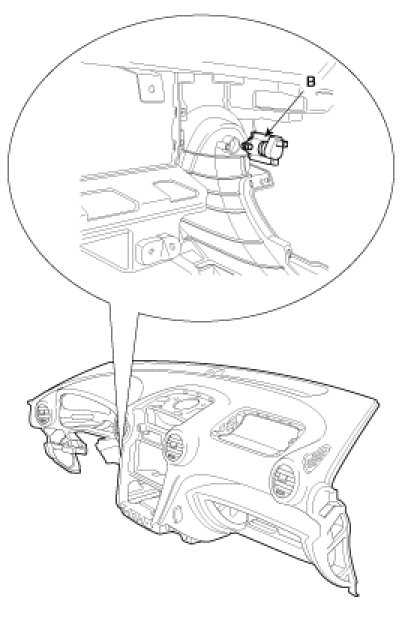

3. Disconnect the connector of in-car sensor. Loosen the mounting 2 screws and then remove the in-car sensor (B).




4. Installation is the reverse order of removal.
