Immobilizer Control Unit: Replacement

Disconnect the negative (-) battery terminal.
Remove the crash pad lower panel (A).

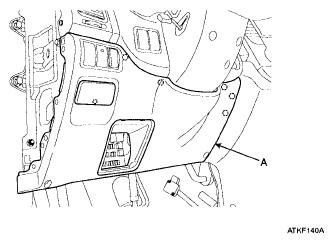

Fig 1: Identifying Crash Pad Lower Panel
Courtesy of KIA MOTORS AMERICA, INC.
Remove the steering column shaft. Refer to STEERING COLUMN AND SHAFT .
Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (A) after loosening the screw.

Fig 2: Identifying SMARTRA Unit
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal procedure.
