Interior Trim: Components

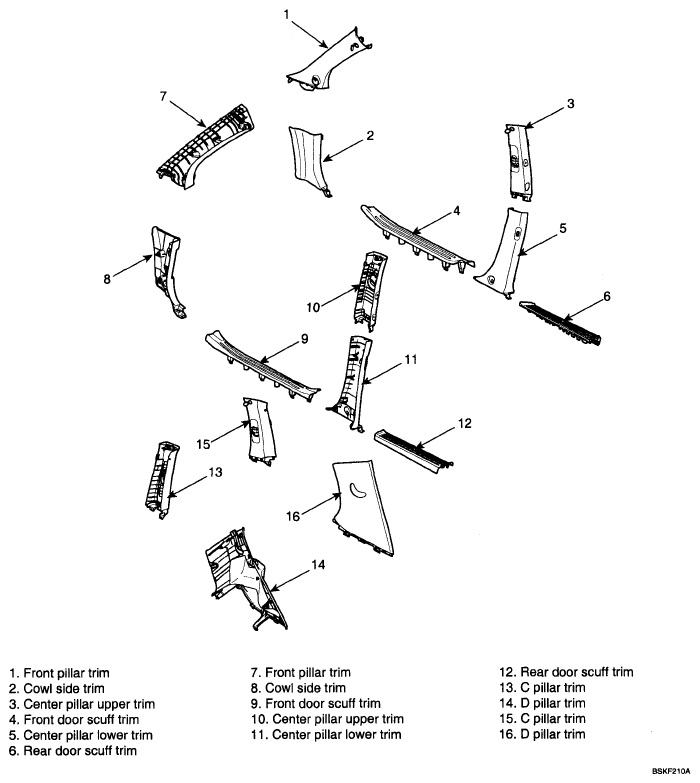

Fig 1: Identifying Interior Trim Components
G04884112Courtesy of KIA MOTORS AMERICA, INC.
