Windshield Glass: Replacement: Removal

NOTE:

Remove the following items.
- Front pillar trim, both sides. See FRONT PILLAR TRIM .
- Windshield wiper arms and cowl cover. See WINDSHIELD WIPER .

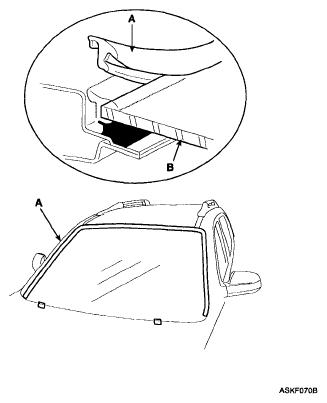

Remove the windshield glass side molding.

Fig 1: Removing Windshield Glass Side Molding
Courtesy of KIA MOTORS AMERICA, INC.

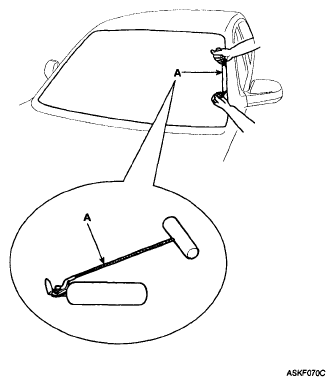

Cut out the sealant using the sealant cutting tool (A) (09861-31100).

Fig 2: Cutting Out Sealant Using Sealant Cutting Tool
Courtesy of KIA MOTORS AMERICA, INC.

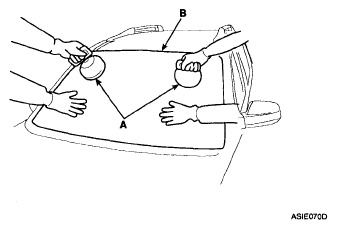

Remove the windshield (A) carefully using the glass holder (B) (09861-31100).

Fig 3: Removing Windshield Using Glass Holder
Courtesy of KIA MOTORS AMERICA, INC.
