Mechanical Power Steering System: Components

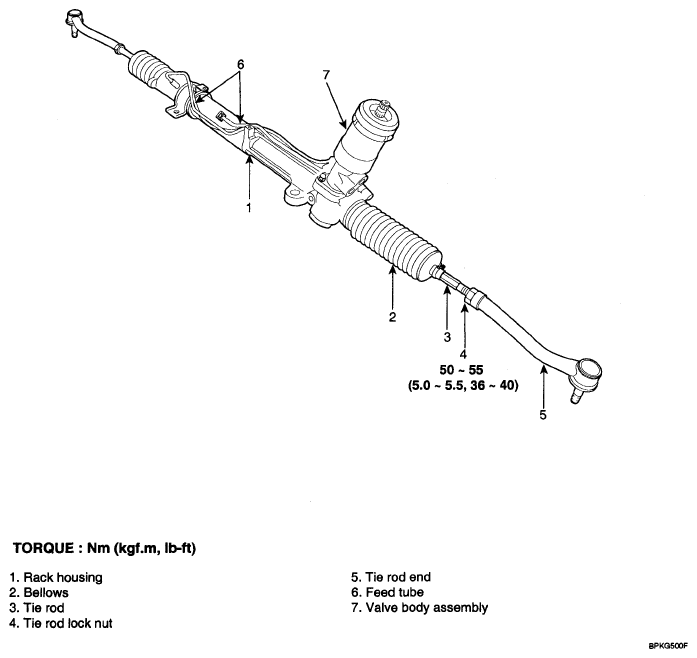

Fig 1: Mechanical Power Steering System Replacement Components With Torque Specifications
G04882646Courtesy of KIA MOTORS AMERICA, INC.
