Key Lock Assembly

Make a groove on head of the special bolt (A) by using a punch.

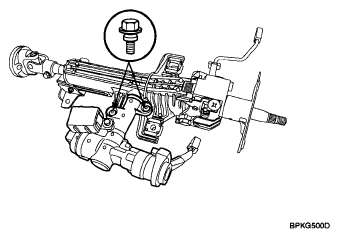

Fig 1: Identifying Key Lock Assembly Special Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the key lock assembly (A) from the steering column (B) by loosing special bolts.

Fig 2: Identifying Key Lock Assembly And Steering Column
Courtesy of KIA MOTORS AMERICA, INC.
When reassembling the key lock assembly, loosely install new special bolts to the steering column shaft.

Fig 3: Identifying NEW Special Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Tighten the special bolt until its head is cut off.

Fig 4: Tightening Special Bolt
