Special Service Tools

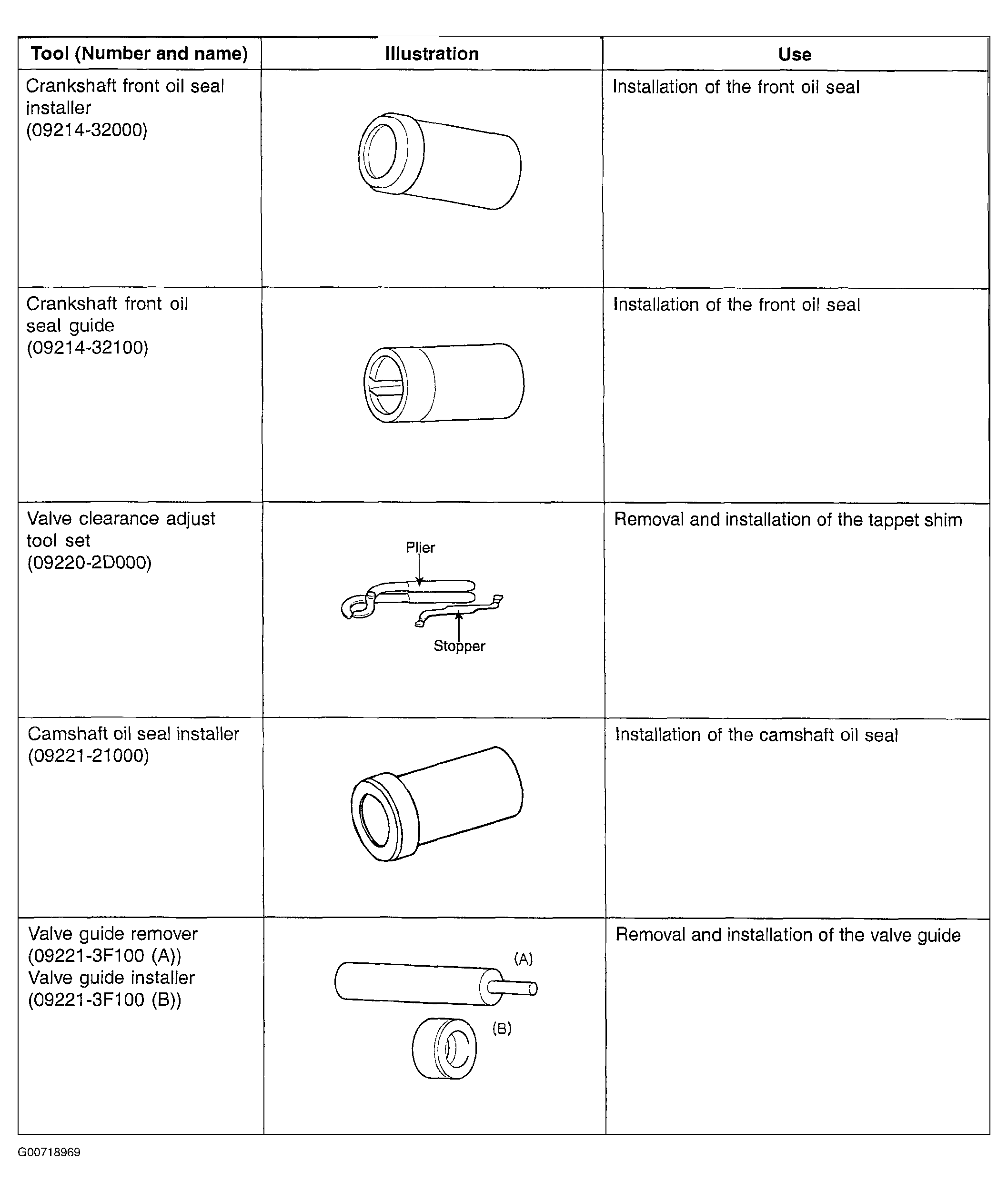

Fig 1: Identifying Service Tools (1 Of 2)
G00718969Courtesy of KIA MOTORS AMERICA, INC.

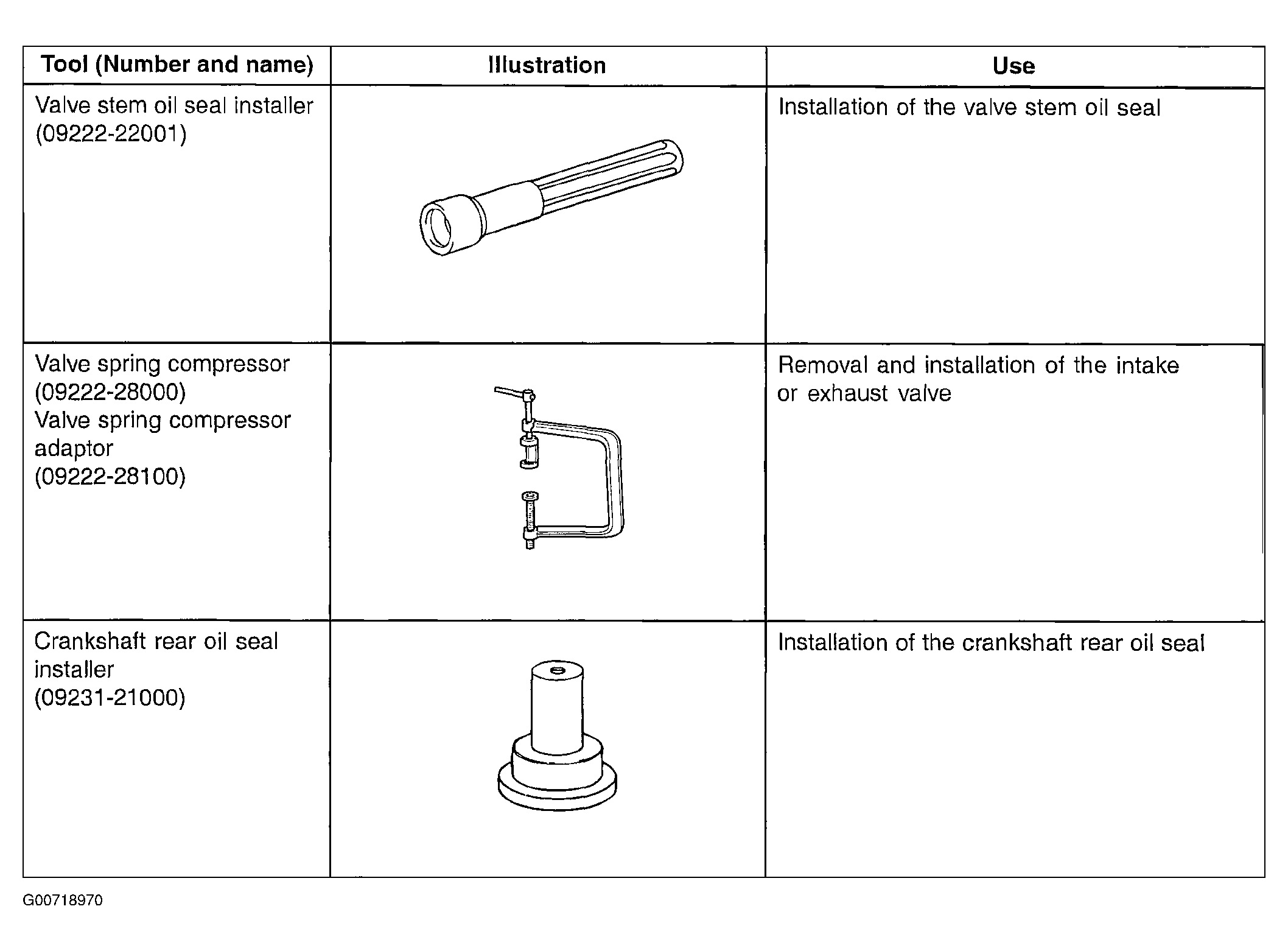

Fig 2: Identifying Service Tools (2 Of 2)
G00718970Courtesy of KIA MOTORS AMERICA, INC.
